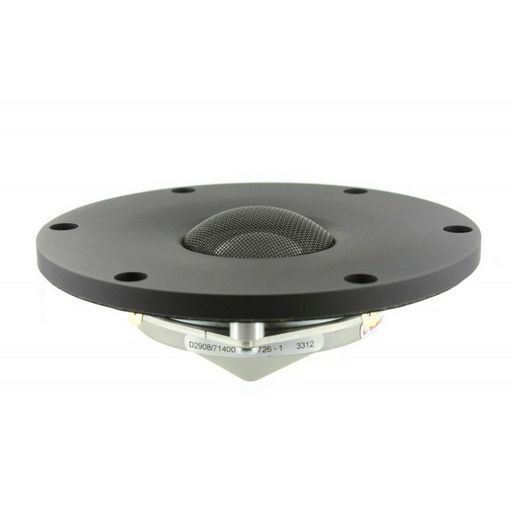

SCAN-SPEAK 1 DOME TWEETER BERYLLIUM
REVELATOR NEODYMIUM
SKU code: WES_D2908714000_1
This is a SCAN-SPEAK 1 DOME TWEETER BERYLLIUM of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER BERYLLIUM |
| Notes | REVELATOR NEODYMIUM A highly efficient and high-power 8 ohm 1 beryllium dome tweeter, it reproduces music clean and clear at all listening levels with dynamic precision and a superb vocal rendition as when recorded. The smooth machined aluminium faceplate and the acoustical very transparent wire-mesh protection grille not only represent a beautiful appearance is also allows the sound to be dispersed free and undistorted to the listener.Beryllium Diaphragm (99% Pure Be)Patented Symmetrical Drive (SD-2) motorBlack Anodized Ø120mm Machined Alu FaceplateRear Mount Magnet SystemTitanium Voice Coil FormerNon Resonant Aluminium Rear Chamber |
| Description | 26mm Beryllium Tweeter 8 ohm, Large Ring Neo, Black Faceplate, Grill |
| Impedance | 8Ω (Re 6.5Ω) |
| Power | 130Wrms |
| Sens. | 92.0dB |
| Fs | 534Hz |
| Qes | 0.50 |
| Qms | 7.3 |
| Qts | 0.47 |
| Cms | 0.26mm/N |
| Coil | 26mmØ |
| Depth | 28mm |
| Impedance (Ohm) | 8 ohm |
| Inch | 1 |
| Le | 0.02mH |
| Mag. | 0.5kg |
| Mms | 0.33g |
| Power (RMS) | 101-150 Watt |
| Re | 6.5Ω |
| Rms | 0.15kg/s |
| Sd | 7.0cm² |
| Size | 1' |
| Type | Tweeter |
| Vas | 0.02L |
| Width | 120mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
| Page | 1 |
| Price Type | each |
| Series | Revelator |
| SKU No | WES_D2908/714000_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | D2908/714000 |
| SKU | WES_D2908714000_1 |
| Brand | Scan-speak |
