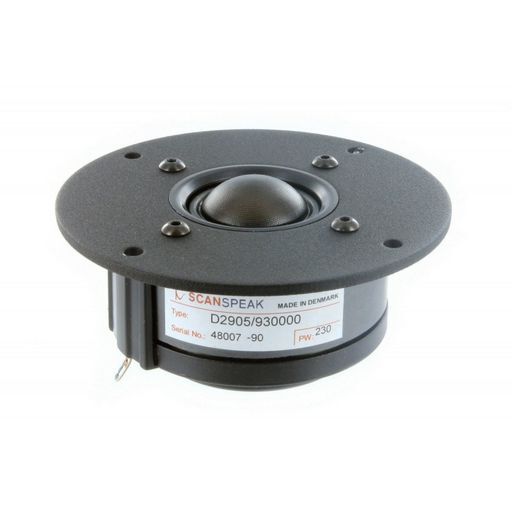

SCAN-SPEAK 1 DOME TWEETER CLASSIC
FABRIC DOME ALUMINIUM FACED CLASSIC
SKU code: WES_D2905930000_1
This is a SCAN-SPEAK 1 DOME TWEETER CLASSIC of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER CLASSIC |
| Notes | FABRIC DOME ALUMINIUM FACED CLASSIC The Classic tweeters are among the many highly praised designs in Classic series. They have enjoyed success over 3 decades. And still among the best tweeters available. The D2905/9000 tweeter kick-started a new era with a line of very high quality 1 tweeters. Despite their many years on the market still used in many top High-End speakers around the world.1 Textile Dome DiaphragmLow Resonance Rear ChamberFerro FluidBlack Painted Alu Face Plate |
| Description | 28mm Dome Tweeter 6 ohm, Ferrite Magnet, Ferro Fluid |
| Bi | 3.5Tm |
| Cms | 0.13mm/N |
| Coil | 28mmØ |
| Depth | 40mm |
| Freq. | 2K30KHz |
| Fs | 650Hz |
| Impedance | 6Ω (Re 4.7Ω) |
| Impedance (Ohm) | 8 ohm |
| Inch | 1 |
| Le | 0.08mH |
| Mag. | 0.7kg |
| Manufacturer | Scan-speak |
| Md | 0.45g |
| Mms | 0.45g |
| Power | 150Wrms |
| Power (RMS) | 101-150 Watt |
| Price Type | each |
| Qes | 0.72 |
| Qms | 0.94 |
| Qts | 0.41 |
| Re | 4.7Ω |
| Rms | 1.96kg/s |
| Sd | 8.5cm² |
| Sens. | 90dB |
| Size | 1' |
| Type | Tweeter |
| Vas | 0.01L |
| Width | 104mm |
| Zn | 8Ω |
| Page | 1 |
| Series | Classic |
| SKU No | WES_D2905/930000_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | D2905/930000 |
| SKU | WES_D2905930000_1 |
| Brand | Scan-speak |
