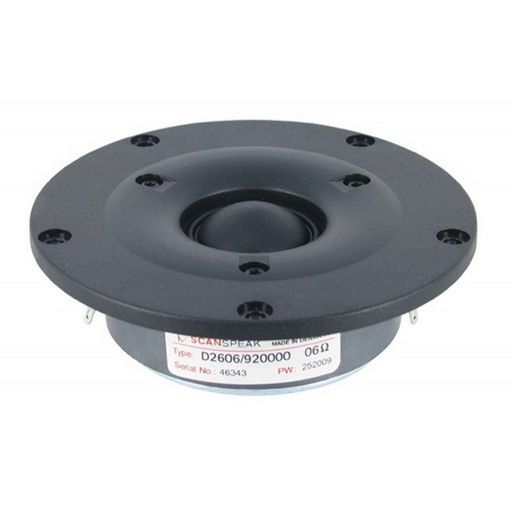

SCAN-SPEAK 1 DOME TWEETER DISCOVERY
CURVED FACIA
SKU code: WES_D2606920000_1
This is a SCAN-SPEAK 1 DOME TWEETER DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER DISCOVERY |
| Notes | CURVED FACIA The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.High Performance TweeterLow Damping Ferrofluid CoolingLinear response faceplate, Neutral DesignCoated Textile DiaphragmHigh StabilityDampened Cavity in Pole Piece |
| Description | 26mm Dome Tweeter 6 ohm, Ferrite Magnet |
| Impedance | 6Ω (Re 4.6Ω) |
| Power | 100Wrms |
| Sens. | 91.4dB |
| Fs | 1100Hz |
| Qes | 1.31 |
| Qms | 2.36 |
| Qts | 0.84 |
| Cms | 0.07mm/N |
| Coil | 26mmØ |
| Depth | 27mm |
| Impedance (Ohm) | 6 ohm |
| Inch | 1 |
| Le | 0.04mH |
| Mag. | 0.5kg |
| Mms | 0.3g |
| Power (RMS) | 51-100 Watt |
| Re | 4.6Ω |
| Rms | 0.88kg/s |
| Sd | 7.1cm² |
| Size | 1' |
| Type | Tweeter |
| Vas | 0.01L |
| Width | 104mm |
| Zn | 6Ω |
| Manufacturer | Scan-speak |
| Page | 1 |
| Series | Discovery |
| Price Type | each |
| SKU No | WES_D2606/920000_1 |
