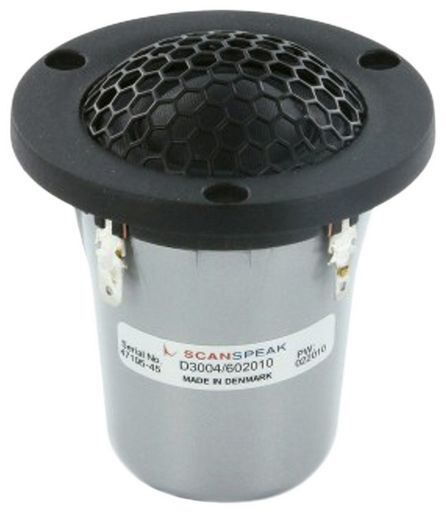

SCAN-SPEAK 1 DOME TWEETER ILLUMINATOR
COMPACT 60mm FACIA - DEEP CHAMBER
SKU code: WES_D3004602010_1
This is a SCAN-SPEAK 1 DOME TWEETER ILLUMINATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER ILLUMINATOR |
| Notes | COMPACT 60mm FACIA - DEEP CHAMBER The face plates are die cast in aluminium for a beautiful modern look and maximum mechanical stability. Optimised to offer a small package that can fit into tight spaces such as compact cabinets & automotive trim. Protective grille. Ring neodymium magnet. Deep chamber for lower resonance die cast in aluminium and designed with a contoured shape for heat sinking Exceptional monitor quality sound and all-round versatile tweeter package. |
| Description | 26mm Dome Tweeter 4 ohm, Neo Magnet, Large Chamber, Grill |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 50Wrms |
| Coil | 26mmØ |
| Width | 61.9mm |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 55.4mm |
| Mag. | 0.2kg |
| Sens. | 89.6dB |
| Re | 3.0Ω |
| Qms | 2.5 |
| Qes | 0.97 |
| Qts | 0.7 |
| Vas | 0.03L |
| Sd | 7.0cm² |
| Cms | 0.4mm/N |
| Fs | 425Hz |
| Mms | 0.35g |
| Zn | 4Ω |
| Le | 0.02mH |
| Rms | 0.4kg/s |
| Manufacturer | Scan-speak |
| Power (RMS) | 0-50 Watt |
| QTY | 1 |
| Page | 1 |
| Inch | 1 |
| Impedance (Ohm) | 4 ohm |
| Prms | 50W |
| O/D | 62mm |
| Series | Illuminator |
| Brand. | Scan-speak |
| SKU No | WES_D3004/602010_1 |
