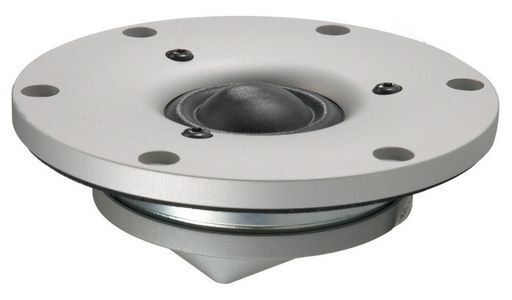

SCAN-SPEAK 1 DOME TWEETER REVELATOR
NEODYMIUM MOTOR - NON-RESONANT CHAMBER
SKU code: WES_D2904710002_1
This is a SCAN-SPEAK 1 DOME TWEETER REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 DOME TWEETER REVELATOR |
| Notes | NEODYMIUM MOTOR - NON-RESONANT CHAMBER The Revelator Tweeters large roll surround technology represents a breakthrough in overall performance, with outstanding off-axis response, high output capability and low resonance frequency. Additional enhancements have been made to reduce distortion and power compression, such as large neodymium magnet systems for high sensitivity, and a careful design to optimise airflow in the chambers.1 Coated Textile DiaphragmPatented Symmetrical Drive (SD-2) motorNon Resonant Alu Rear ChamberLarge Roll Surround f. Wide DispersionLarge Ring Neo Magnet f. High OutputSilver Anodized Machined Alu Face Plate |
| Description | 26mm Dome Tweeter 4 ohm, Neo, Silver |
| Colour | Silver |
| Impedance | 4Ω (Re 3.7Ω) |
| Fs | 520Hz |
| Power | 90Wrms |
| Sens. | 94.4dB |
| Qes | 0.50 |
| Qms | 3.50 |
| Qts | 0.44 |
| Vas | 0.02L |
| Cms | 0.23mm/N |
| Coil | 26mmØ |
| Depth | 27mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.01mH |
| Mag. | 0.4kg |
| Mms | 0.4g |
| Power (RMS) | 51-100 Watt |
| Re | 3.7Ω |
| Rms | 0.37kg/s |
| Sd | 7.0cm² |
| Series | Revelator |
| Size | 1' |
| Type | Tweeter |
| Width | 104mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_D2904/710002_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | D2904/710002 |
| SKU | WES_D2904710002_1 |
| Brand | Scan-speak |
