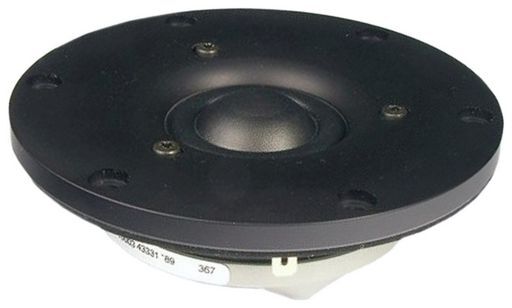

This is a SCAN-SPEAK 1 DOME TWEETER REVELATOR of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SCAN-SPEAK 1 DOME TWEETER REVELATOR
Notes NEODYMIUM NON-RESONANT CHAMBER Utilising the advanced technologies developed for the Revelator series Combined to develop a premium top-of-the line sounding transducer in a relatively compact package for where a full face plate is not viable.Small in size, attractive package with integrated metal grill protection Suitable for compact speaker design and in car audio applications (4Ω) 28mm Textile dome with patented design lateral air chamber enables enhanced motor flux and extends power. Ideal for automotive applications.
Description26mm Dome Tweeter 4 ohm, Neo, Black
ColourBlack
TypeTweeter
Size1'
Price Typeeach
Power90Wrms
Coil26mmØ
Width104mm
Impedance4Ω (Re 3.0Ω)
Depth26.4mm
Mag.0.4kg
Sens.94.4dB
Re3.0Ω
Qms3.5
Qes0.5
Qts0.44
Vas0.02L
Sd7.0cm²
Cms0.23mm/N
Fs520Hz
Mms0.4g
Zn
Le0.01mH
Rms0.37kg/s
ManufacturerScan-speak
QTY1
Page1
Inch1
Impedance (Ohm)4 ohm
Power (RMS)51-100 Watt
Prms90W
SeriesRevelator
Brand.Scan-speak
SKU NoWES_D2904/710003_1
