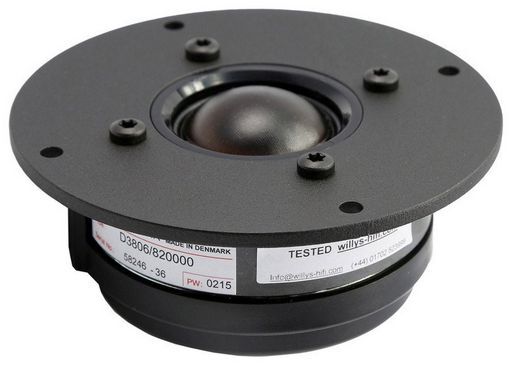

SCAN-SPEAK 1½ DOME UPPER-MIDRANGE CLASSIC
SD-2 UPPER MIDRANGE 100W FROM 1000HZ-13500HZ
SKU code: WES_D3806820000_1
This is a SCAN-SPEAK 1½ DOME UPPER-MIDRANGE CLASSIC of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1½ DOME UPPER-MIDRANGE CLASSIC |
| Notes | SD-2 UPPER MIDRANGE 100W FROM 1000HZ-13500HZ Extending the highly regarded technology developed for the class leading tweeters, the SD-2 motor virtually eliminates electrical phase shift Made from a special formulated doped textile for low mass & long-life It has a very smooth response and good dispersion and reproduces music with extreme clarity and integrity. Depth perspectives are very accurate The vent pole piece is damped by porous foam pad for correct tuning and coupling to the rear chamber. The surround is partly covered by the front ring to minimise distortion products and further improves phase response. Optimised for 1KHz to 14KHz band to match with super tweeters. |
| Description | 38mm Dome Tweeter 6 ohm, Ferrite Magnet, Non-Resonant Chamber |
| Type | Tweeter |
| Size | 7' |
| Price Type | each |
| Power | 100Wrms |
| Coil | 38mmØ |
| Width | 125mm |
| Impedance | 6Ω (Re 5.7Ω) |
| Depth | 49mm |
| Mag. | 1.1kg |
| Sens. | 89dB |
| Re | 5.7Ω |
| Qms | 0.93 |
| Qes | 1 |
| Qts | 0.48 |
| Vas | 0.04L |
| Sd | 14cm² |
| Cms | 0.16mm/N |
| Fs | 450Hz |
| Mms | 0.8g |
| Zn | 6Ω |
| Le | 0.04mH |
| Rms | 2.44kg/s |
| Manufacturer | Scan-speak |
| Impedance (Ohm) | 6 ohm |
| QTY | 1 |
| Page | 1 |
| Inch | 1.5 |
| Prms | 100W |
| Fr | 1K-13KHz |
| Power (RMS) | 51-100 Watt |
| Series | Classic |
| Brand. | Scan-speak |
| SKU No | WES_D3806/820000_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | D3806/820000 |
| SKU | WES_D3806820000_1 |
| Brand | Scan-speak |
