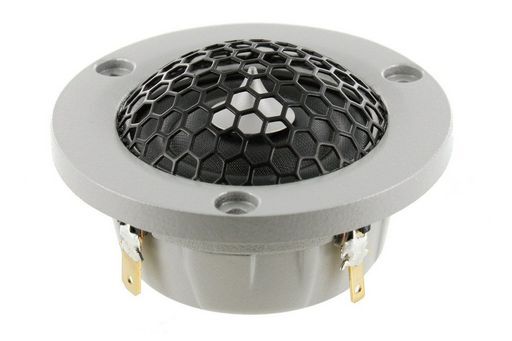

This is a SCAN-SPEAK 1” RING RADIATOR AUTOMOTIVE of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SCAN-SPEAK 1” RING RADIATOR AUTOMOTIVE
Notes AUTOMOTIVE SERIES 26mm Ring Radiator 4ohm, Neo, Small Chamber, Grill. Scan-Speak SILVER SERIES are specially selected units from Scan-Speak’s well-known home audio speakers. Which have been optimized for automotive use. This series enables audiophiles to experience in their vehicle the - TRUE TO LIVE - that they enjoy from their high-end home audio system.Scan-Speak1 Ring Dome DiaphragmSymmetrical Drive (SD-2) motorNon Resonant aluminium Rear ChamberPatented Phase Plug DesignSound Transparent Protective GrilleDie Cast Housing & Face Plate
Description26mm Ring Radiator 4 ohm, Neo, Small Chamber, Grill
Fs625Hz
Impedance4Ω (Re 3.8Ω)
Power50Wrms
Sens.87.5dB
Qes1.43
Qms5.73
Qts1.14
Vas0.01L
Cms0.19mm/N
Coil26mmØ
Depth22mm
Impedance (Ohm)4 ohm
Inch1
Le0.02mH
Mag.0.15kg
ManufacturerScan-speak
Mms0.35g
Power (RMS)0-50 Watt
Re3.8Ω
Rms0.24kg/s
Sd5.6cm²
SeriesAutomotive
Size1'
TypeTweeter
Width62mm
Zn
Price Typeeach
Brand.ScanSpeak
SKU NoWES_R3004/602006_2
