This is a SCAN-SPEAK 1 RING RADIATOR DISCOVERY of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

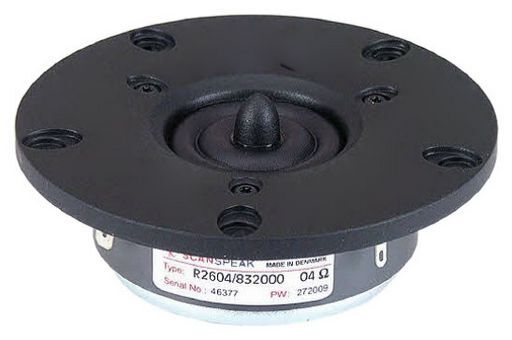

Title SCAN-SPEAK 1 RING RADIATOR DISCOVERY
Notes The 1 dual ring tweeter radiator from Scan-speak offers excellent sensitivity and to extend the frequency response to above 40kHz.  The additional volume from the featured magnet increases the size of the chamber, lowering the resonance frequency.   This tweeter is an excellent choice for any high end home or automotive system.Extended frequency to above 40kHzLow distortionWave guide center plug (Patented)Very low resonance frequency - 500HzDual ring radiator diaphragm (Patented)Textile diaphragm
Description26mm Ring Radiator 4 ohm, Ferrite Magnet, Chamber
Power100Wrms
Impedance4Ω (Re 3.7Ω)
Sens.90dB
Qms2.77
Qes0.52
Qts0.44
Vas0.01L
Fs500Hz
Cms0.34mm/N
Coil26mmØ
Depth40mm
Impedance (Ohm)4 ohm
Inch1
Le0.02mH
Mag.0.5kg
Mms0.30g
Power (RMS)51-100 Watt
Price Typeeach
Re3.7Ω
Rms0.34kg/s
Sd5.4cm²
Size1'
TypeTweeter
Width104mm
Zn
ManufacturerScan-speak
Page1
SeriesDiscovery
SKU NoWES_R2604/832000_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN R2604/832000
SKU WES_R2604832000_1
Brand Scan-speak
