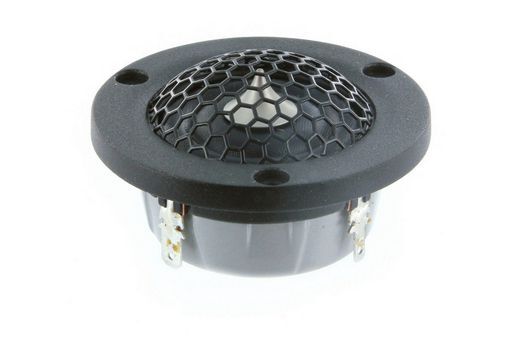

SCAN-SPEAK 1 RING RADIATOR TWEETER ILLUMINATOR
62MM FACIA 1” DOME NEODYMIUM PHASE-PLUG
SKU code: WES_R3004602000_1
This is a SCAN-SPEAK 1 RING RADIATOR TWEETER ILLUMINATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 RING RADIATOR TWEETER ILLUMINATOR |
| Notes | 62MM FACIA 1” DOME NEODYMIUM PHASE-PLUG The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.1 Ring Dome DiaphragmPatented Symmetrical Drive (SD-2) motorNon Resonant Alu Rear ChamberPatented Phase Plug DesignSound Transparant Protective GrillDie Cast Housing & Face Plate |
| Description | 26mm Ring Radiator 4 ohm, Neo, Small Chamber, Grill |
| Impedance | 4Ω (Re 3.8Ω) |
| Power | 50Wrms |
| Sens. | 87.4dB |
| Qes | 1.43 |
| Qms | 5.73 |
| Qts | 1.14 |
| Cms | 0.16mm/N |
| Coil | 26mmØ |
| Depth | 22mm |
| Fs | 625Hz |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.02mH |
| Mag. | 0.15kg |
| Mms | 0.35g |
| Power (RMS) | 0-50 Watt |
| Re | 3.8Ω |
| Rms | 0.24kg/s |
| Sd | 5.6cm² |
| Size | 1' |
| Type | Tweeter |
| Vas | 0.01L |
| Width | 62mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Page | 1 |
| Price Type | each |
| Series | Illuminator |
| Brand. | ScanSpeak |
| SKU No | WES_R3004/602000_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | R3004/602000 |
| SKU | WES_R3004602000_1 |
| Brand | Scan-speak |
