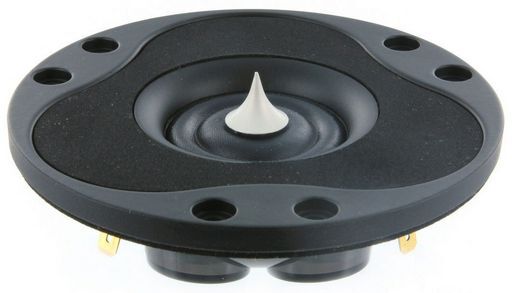

SCAN-SPEAK 1 RING RADIATOR TWEETER ILLUMINATOR
NEODYMIUM AIR-CIRC CLOVER
SKU code: WES_R3004662000_1
This is a SCAN-SPEAK 1 RING RADIATOR TWEETER ILLUMINATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 RING RADIATOR TWEETER ILLUMINATOR |
| Notes | NEODYMIUM AIR-CIRC CLOVER 26mm Ring Radiator 4ohm, Neo, AirCirc, Clover. The Illuminator tweeters stand for superb vocal rendition and excellent imaging at all listening locations. With its large roll surround and textile diaphragm provide a flat frequency response to above 30KHz. The unique AirCirc Magnet System, and its rear chamber, results in elimination of reflections and resonances that compromise the performance of traditional motors.1 Ring Dome DiaphragmPatented Symmetrical Drive (SD-2) motorDiffraction Damping Rubber FrontPatented Phase Plug DesignAirCirc Motor Design w. 6 Neo magnetsDie Cast Rubber Painted Alu Face Plate |
| Description | 26mm Ring Radiator 4 ohm, Neo, AirCirc, Clover |
| Impedance | 4Ω (Re 3.9Ω) |
| Fs | 520Hz |
| Power | 90Wrms |
| Sens. | 90.4dB |
| Qes | 0.56 |
| Qms | 3.27 |
| Qts | 0.48 |
| Cms | 0.31mm/N |
| Coil | 26mmØ |
| Depth | 23mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.03mH |
| Mag. | 0.3kg |
| Mms | 0.30g |
| Power (RMS) | 51-100 Watt |
| Re | 3.9Ω |
| Rms | 0.30kg/s |
| Sd | 5.6cm² |
| Series | Illuminator |
| Size | 1' |
| Type | Tweeter |
| Vas | 0.01L |
| Width | 104mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_R3004/662000_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | R3004/662000 |
| SKU | WES_R3004662000_1 |
| Brand | Scan-speak |
