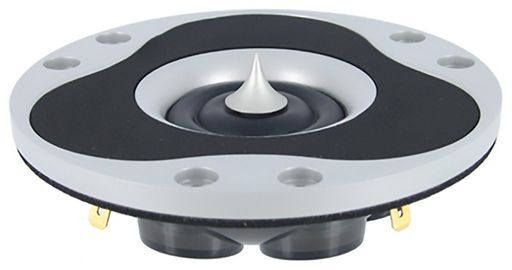

SCAN-SPEAK 1 RING TWEETER ILLUMINATOR
ILLUMINATOR RING RADIATOR - NEODYMIUM MAGNETS
SKU code: WES_R3004662001_2
This is a SCAN-SPEAK 1 RING TWEETER ILLUMINATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1 RING TWEETER ILLUMINATOR |
| Notes | ILLUMINATOR RING RADIATOR - NEODYMIUM MAGNETS The large-roll surround and textile dome ring radiator provides a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminium for maximum mechanical stability. Scan-Speak’s unique AirCirc Magnet System has six separate neodymium slugs. This, in combination with the chamber, results in the elimination of reflections and resonances that compromise traditional motors. Rubber painted aluminium diecast faceplate, Silver. |
| Description | 26mm Ring Radiator 4 ohm, Neo, AirCirc, Clover |
| Type | Tweeter |
| Size | 1' |
| Price Type | each |
| Power | 90Wrms |
| Coil | 26mmØ |
| Width | 104mm |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 23.3mm |
| Mag. | 0.3kg |
| Sens. | 91.5dB |
| Re | 3.0Ω |
| Qms | 3.79 |
| Qes | 0.62 |
| Qts | 0.54 |
| Vas | 0.02L |
| Sd | 5.6cm² |
| Cms | 0.29mm/N |
| Fs | 500Hz |
| Mms | 0.35g |
| Zn | 4Ω |
| Le | 0.03mH |
| Rms | 0.29kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Inch | 1 |
| O/D | 105mm |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Prms | 90W |
| Series | Illuminator |
| Brand. | Scan-speak |
| SKU No | WES_R3004/662001_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | R3004/662001 |
| SKU | WES_R3004662001_2 |
| Brand | Scan-speak |
