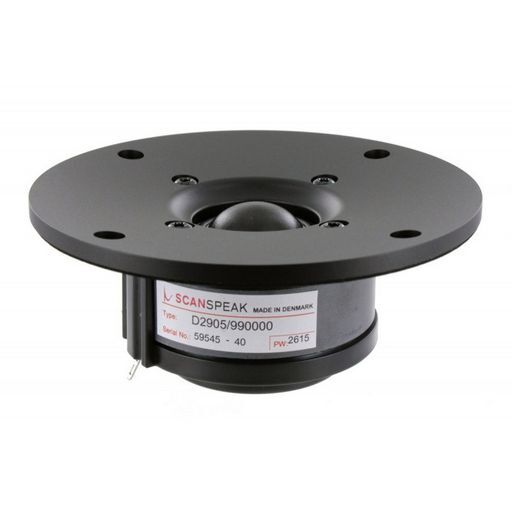

SCAN-SPEAK 1.25 ORIGINAL REVELATOR
THE ORIGINAL REVELATOR LARGE FACIA 130MM
SKU code: WES_D2905990000_1
This is a SCAN-SPEAK 1.25 ORIGINAL REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 1.25 ORIGINAL REVELATOR |
| Notes | THE ORIGINAL REVELATOR LARGE FACIA 130MM The original Revelator tweeter - is build on the heritage of Scan-Speak’s successful Classic tweeters, continuing with Symmetrical Drive (SD-2) motor design which includes copper caps, the non resonant chamber and the special treated textile 29mm dome and further optimized for the ultimate performance utilizing a large machined aluminium wave guide front.Excellent Sound ReproductionPatented Symmetrical Drive (SD-2) motorLarge Wave Guide Front1 Textile Dome DiaphragmWide Surround Textile DiaphragmBlack Anodized Mashined Alu Face Plate |
| Description | 28mm Dome Tweeter 6 ohm, Ferrite Magnet, Waveguide |
| Impedance | 4Ω (Re 5.6Ω) |
| Fs | 500Hz |
| Power | 225Wrms |
| Sens. | 91.0dB |
| Qes | 0.72 |
| Qms | 4.83 |
| Qts | 0.63 |
| Cms | 0.23mm/N |
| Coil | 28mmØ |
| Depth | 48mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 1 |
| Le | 0.01mH |
| Mag. | 0.8kg |
| Mms | 0.45g |
| Power (RMS) | 200+ Watt |
| Re | 3.7Ω |
| Rms | 0.29kg/s |
| Sd | 8.5cm² |
| Size | 7' |
| Type | Tweeter |
| Vas | 0.02L |
| Width | 130mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Page | 1 |
| Series | Classic |
| Price Type | each |
| Brand. | ScanSpeak |
| SKU No | WES_D2905/990000_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | D2905/990000 |
| SKU | WES_D2905990000_1 |
| Brand | Scan-speak |
