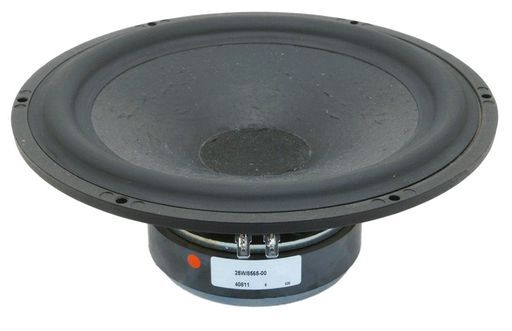

SCAN-SPEAK 10 WOOFER CLASSIC
PAPER WITH CARBON FIBRE CONE
SKU code: WES_25W8565-00_1
This is a SCAN-SPEAK 10 WOOFER CLASSIC of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 10 WOOFER CLASSIC |
| Notes | PAPER WITH CARBON FIBRE CONE The Symmetric Drive (SD-1) concept with copper in the magnet system was invented by Scan-Speak. High-quality magnet system design has thus been a key feature of Scan-Speak design since the companies inception. The Classic series woofers are highly praised, and are used in some of the worlds most exceptional high-end Loudspeakers.Patented Symmetrical Drive Motor DesignLow-Loss linear suspensionLow Damping SBR Rubber SurroundLow Resonance Freq. 20HzAir Dried Paper/Carbon Fibre Cone42mm Voice Coil |
| Description | 26cm Midwoofer 8 ohm, Carbonfiber Paper Cone |
| Fs | 20Hz |
| Impedance | 8Ω (Re 6.2Ω) |
| Power | 100Wrms |
| Sens. | 88.0dB |
| Qes | 0.44 |
| Qms | 5.40 |
| Qts | 0.41 |
| Vas | 225L |
| Cms | 1.47mm/N |
| Coil | 42mmØ |
| Depth | 88mm |
| Impedance (Ohm) | 8 ohm |
| Inch | 10 |
| Le | 0.40mH |
| Mag. | 2.3kg |
| Mms | 43g |
| Power (RMS) | 51-100 Watt |
| Re | 6.2Ω |
| Rms | 1.00kg/s |
| Sd | 330cm² |
| Series | Classic |
| Size | 10' |
| Type | Woofer |
| Width | 255mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_25W/8565-00_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 25W/8565-00 |
| SKU | WES_25W8565-00_1 |
| Brand | Scan-speak |
