SCAN-SPEAK 10 WOOFER DISCOVERY
ALUMINIUM CONE
SKU code: WES_26W4534G00_1

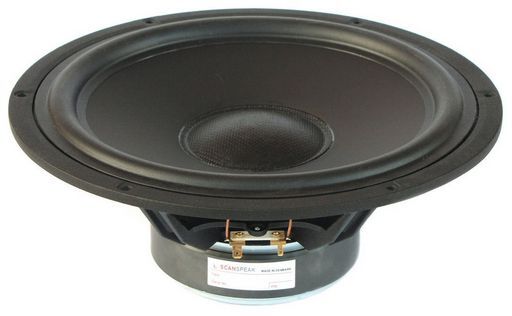

This is a SCAN-SPEAK 10 WOOFER DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 10 WOOFER DISCOVERY |
| Notes | ALUMINIUM CONE 26cm Woofer 4 ohm, Aluminium Cone, Ferrite Magnet. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.Black anodized aluminium coneFerrite magnet with aluminium shorting ringLow resonance of 23HzCoated fibreglass dust capDie cast aluminium chassis, vented below spider |
| Description | 26cm Woofer 4 ohm, Alu Cone, Ferrite Magnet |
| Impedance | 4Ω (Re 4.5Ω) |
| Fs | 23Hz |
| Power | 90Wrms |
| Sens. | 90.5dB |
| Qes | 0.37 |
| Qms | 9.57 |
| Qts | 0.36 |
| Vas | 156L |
| Cms | 0.92mm/N |
| Coil | 38mmØ |
| Depth | 100mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 10 |
| Le | 0.70mH |
| Mag. | 2.9kg |
| Mms | 52g |
| Power (RMS) | 51-100 Watt |
| Re | 4.5Ω |
| Rms | 0.80kg/s |
| Sd | 350cm² |
| Series | Discovery |
| Size | 10' |
| Type | Woofer |
| Width | 272mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_26W/4534G00_1 |
