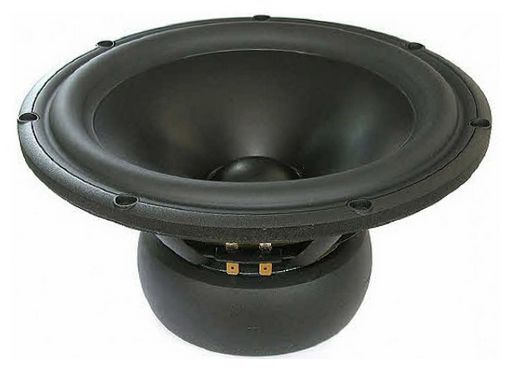

SCAN-SPEAK 10 WOOFER REVELATOR
CLASSIC PAPER CONE
SKU code: WES_26W8861T00_1
This is a SCAN-SPEAK 10 WOOFER REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 10 WOOFER REVELATOR |
| Notes | CLASSIC PAPER CONE Low loss linear suspension, SD-1 motor system, hard paper cone. This robust 10” woofer was designed to provide deep and accurate bass in a small enclosure. 2” voice coil on a titanium former, a low loss linear suspension and symmetric drive motor. The deep set hard paper cone is attached to the frame with a minimal reflection rubber surround. The 9mm X-max insures good linear travel. |
| Description | 26cm Woofer 8 ohm, Rigid Paper Cone, Ferrite Magnet |
| Type | Woofer |
| Size | 10' |
| Price Type | each |
| Power | 170Wrms |
| Coil | 50mmØ |
| Width | 260mm |
| Impedance | 8Ω (Re 6.2Ω) |
| Depth | 124.7mm |
| Mag. | 3.7kg |
| Sens. | 88.5dB |
| Re | 6.2Ω |
| Qms | 5.2 |
| Qes | 0.33 |
| Qts | 0.31 |
| Vas | 231L |
| Sd | 320cm² |
| Cms | 1.61mm/N |
| Fs | 19Hz |
| Mms | 43.5g |
| Zn | 8Ω |
| Le | 0.35mH |
| Rms | 1kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Inch | 10 |
| Power (RMS) | 151-200 Watt |
| Prms | 170W |
| Impedance (Ohm) | 8 ohm |
| Series | Revelator |
| Brand. | Scan-speak |
| SKU No | WES_26W/8861T00_1 |
