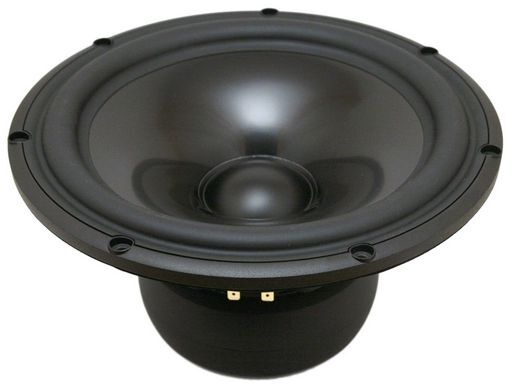

SCAN-SPEAK 10 WOOFER REVELATOR
ALUMINIUM CONE
SKU code: WES_26W8867T00_1
This is a SCAN-SPEAK 10 WOOFER REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 10 WOOFER REVELATOR |
| Notes | ALUMINIUM CONE The Revelator woofers and sub-woofers features very rigid cones in aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.Patented Symmetrical Drive Motor DesignLow-Loss linear suspensionDie cast Alu Chassis vented below spiderRigid Black Anodized Alu ConeLow Damping SBR Rubber SurroundFerrite Magnet System w. Rubber Boot |
| Description | 26cm Woofer 8 ohm, Alu Cone, Ferrite Magnet |
| Fs | 19Hz |
| Impedance | 8Ω (Re 6.8Ω) |
| Power | 80Wrms |
| Sens. | 87.0dB |
| Qes | 0.31 |
| Qms | 4.50 |
| Qts | 0.29 |
| Cms | 1.23mm/N |
| Coil | 50mmØ |
| Depth | 125mm |
| Impedance (Ohm) | 8 ohm |
| Inch | 10 |
| Le | 0.40mH |
| Mag. | 3.7kg |
| Mms | 57g |
| Power (RMS) | 51-100 Watt |
| Re | 6.8Ω |
| Rms | 1.51kg/s |
| Sd | 320cm² |
| Series | Revelator |
| Size | 10' |
| Type | Woofer |
| Vas | 176L |
| Width | 260mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_26W/8867T00_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 26W/8867T00 |
| SKU | WES_26W8867T00_1 |
| Brand | Scan-speak |
