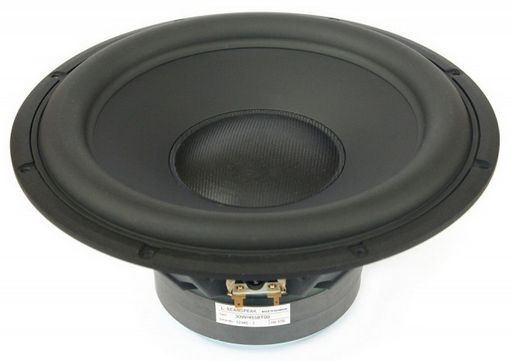

SCAN-SPEAK 12 SUB-WOOFER DISCOVERY
SCAN-SPEAK 12 SUB-WOOFER DISCOVERY
SKU code: WES_30W4558T00_1
This is a SCAN-SPEAK 12 SUB-WOOFER DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 12 SUB-WOOFER DISCOVERY |
| Notes | Scanspeak 4Ω Sub-Woofer - Discovery Range. Extra High output, excellent performance. Aluminium Ring Magnet System. Anodised Aluminium cone with Glass Fibre Dust Cap, die cast aluminium chassis ( vented below spider), 25mm linear excursion, 56mm peak. 150W nominal power.56mm Peak Excursion, 25mm LinearLow Resonance Freq. 17HzMagnet System w. Alu RingHigh Output 89dB @ 2,83VAnodized Alu Cone, Fibre Glass Dust CapDie cast Alu Chassis vented below spider |
| Description | 30cm Subwoofer 4 ohm, Alu Cone, Double Ferrite Magnet |
| Power | 150Wrms |
| Impedance | 4Ω (Re 2.6Ω) |
| Sens. | 89dB |
| Re | 2.6Ω |
| Qms | 5.01 |
| Qes | 0.34 |
| Qts | 0.32 |
| Vas | 197L |
| Fs | 17Hz |
| Le | 0.83mH |
| Manufacturer | Scan-speak |
| Cms | 0.65mm/N |
| QTY | 1 |
| Page | 1 |
| Power (RMS) | 101-150 Watt |
| Inch | 12 |
| Size | 12' |
| Mms | 135g |
| Rms | 2.88kg/s |
| Width | 308mm |
| Impedance (Ohm) | 4 ohm |
| Sd | 466cm² |
| Zn | 4Ω |
| Coil | 50mmØ |
| Mag. | 6.3kg |
| Depth | 80mm |
| Series | Discovery |
| Price Type | each |
| Type | Subwoofer |
| SKU No | WES_30W/4558T00_1 |
