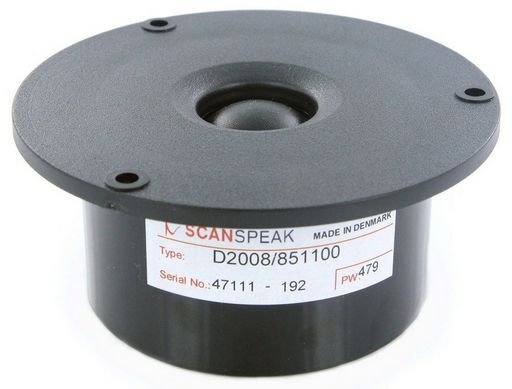

SCAN-SPEAK 3/4” DOME TWEETER CLASSIC
20mm TEXTILE DOME TWEETER
SKU code: WES_D2008851100_1
This is a SCAN-SPEAK 3/4” DOME TWEETER CLASSIC of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 3/4” DOME TWEETER CLASSIC |
| Notes | 20mm TEXTILE DOME TWEETER Double chambered 3/4” damped textile dome tweeter. The voice coil is a precision wound aluminum wire with a 27 strand tinsel braid for a lower resonance. The magnet system is a special high flux ferrite with vented pole plates. The surround of the diaphragm is damped to reduce distortion. The D2008-851200 tweeter’s extremely linear response, low distortion and wide dispersion make it an attractive choice for any speaker system.3/4 Textile Dome DiaphragmDual Rear ChamberWide DispersionVented pole pieceNo Ferro Fluid |
| Description | 20mm Dome Tweeter 8 ohm, Ferrite Magnet |
| Impedance | 8Ω (Re 7.1Ω) |
| Fs | 650Hz |
| Power | 90Wrms |
| Sens. | 89dB |
| Qes | 0.81 |
| Qms | 1.90 |
| Qts | 0.57 |
| Vas | 0.01L |
| Cms | 0.30mm/N |
| Coil | 19.4mmØ |
| Depth | 38mm |
| Impedance (Ohm) | 8 ohm |
| Inch | 0.75 |
| Le | 0.08mH |
| Mag. | 0.4kg |
| Mms | 0.2g |
| Power (RMS) | 51-100 Watt |
| Re | 7.1Ω |
| Rms | 0.43kg/s |
| Sd | 3.8cm² |
| Series | Classic |
| Size | 3/4' |
| Type | Tweeter |
| Width | 92mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_D2008/851100_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | D2008/851100 |
| SKU | WES_D2008851100_1 |
| Brand | Scan-speak |
