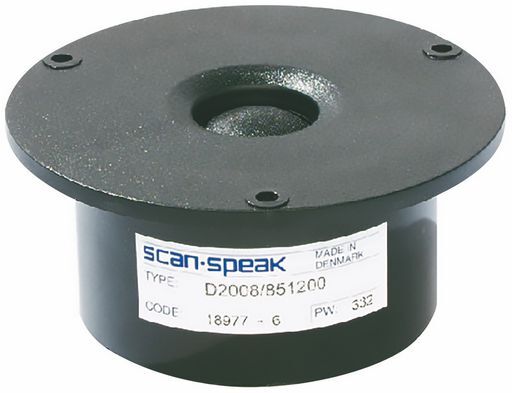

This is a SCAN-SPEAK 3/4 DOME TWEETER CLASSIC of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SCAN-SPEAK 3/4 DOME TWEETER CLASSIC
Notes Textile diaphragm 3/4”, hand coated. Ferro fluid cooled. Very smooth response and wide dispersion. High power handling. Optimised double chamber provides perfect tuning and damping.Acoustic damping of the diaphragm surround reduces distortion, stabilises the acoustic centre for a high end sound that is a premium example of why Scan-Speak’s reputation is so highly regarded.
Description20mm Dome Tweeter 8 ohm, Ferrite Magnet, Ferro Fluid
TypeTweeter
Size3/4'
Price Typeeach
Power90Wrms
Coil19.4mmØ
Width92mm
Impedance8Ω (Re 5.7Ω)
Depth37.5mm
Mag.0.4kg
Sens.90dB
Re5.7Ω
Qms1.26
Qes1.24
Qts0.63
Vas0.01L
Sd3.8cm²
Cms0.16mm/N
Md0.25g
Fs800HZ
Mms0.25g
Zn
Le0.08mH
Rms1kg/s
ManufacturerScan-speak
Inch0.75
QTY1
Page1
Freq.4KHz - 20KHz
Power (RMS)51-100 Watt
Impedance (Ohm)8 ohm
Prms90W
SeriesClassic
Brand.Scan-speak
SKU NoWES_D2008/851200_1
