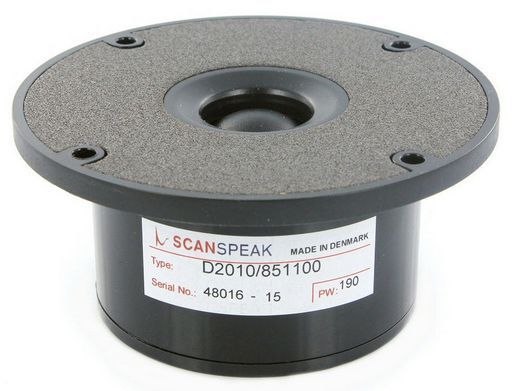

SCAN-SPEAK 3/4” DOME TWEETER CLASSIC
20mm TEXTILE DOME TWEETER
SKU code: WES_D2010851100_1
This is a SCAN-SPEAK 3/4” DOME TWEETER CLASSIC of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 3/4” DOME TWEETER CLASSIC |
| Notes | 20mm TEXTILE DOME TWEETER Textile diaphragm 3/4”, hand coated. Featuring a foam face plate. This reduces mechanical resonances, etc. Ferro fluid cooled. Very smooth response and wide dispersion. High power handling. Optimised double chamber provides perfect tuning and damping. Acoustic damping of the diaphragm surround reduces distortion. Sound reproduction is detailed and a very dynamic Scan-Speak.3/4 Textile Dome DiaphragmDiffraction Damping Foam FrontWide DispersionDual Rear Chamber |
| Description | 20mm Dome Tweeter 8 ohm, Foam Front, Ferrite Magnet |
| Fs | 650Hz |
| Impedance | 8Ω (Re 7.1Ω) |
| Power | 90Wrms |
| Sens. | 89dB |
| Qes | 0.81 |
| Qms | 1.90 |
| Qts | 0.57 |
| Vas | 0.01L |
| Cms | 0.30mm/N |
| Coil | 19.4mmØ |
| Depth | 41mm |
| Impedance (Ohm) | 8 ohm |
| Inch | 0.75 |
| Le | 0.08mH |
| Mag. | 0.4kg |
| Mms | 0.2g |
| Power (RMS) | 51-100 Watt |
| Re | 7.1Ω |
| Rms | 0.43kg/s |
| Sd | 3.8cm² |
| Series | Classic |
| Size | 3/4' |
| Type | Tweeter |
| Width | 98mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_D2010/851100_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | D2010/851100 |
| SKU | WES_D2010851100_1 |
| Brand | Scan-speak |
