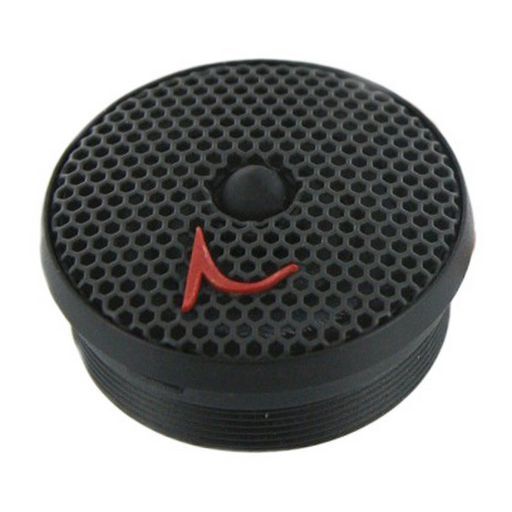

This is a SCAN-SPEAK 3/4” RING RADIATOR AUTOMOTIVE of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SCAN-SPEAK 3/4” RING RADIATOR AUTOMOTIVE
Notes AUTOMOTIVE SERIES 19mm Ring Radiator 4ohm, Neo Magnet, Wedge House & Nut, Grill from the Discovery range. Highly compact 42mm diameter with 8mm protrusion allows discrete flush mounting in dashboards / pillars / doors etc. Supplied with wedge shaped housing for surface mount applications. The frequency response is optimised for in car use. Rated at 40 watts rms.Scan-Speak3/4 Ring Dome tweeter under a grilleOptimized for Car use and installationCompact mounting dimensionsFlange and Nut for door panel mountingWedge House for dashboard mounting
Description19mm Ring Radiator 4 ohm, Neo Magnet, Wedge House & Nut, Grill
Impedance4Ω (Re 4.3Ω)
Fs1000Hz
Power40Wrms
Sens.87.0dB
Qes2.02
Qms8.03
Qts1.61
Vas0.002L
Cms0.11mm/N
Coil19mmØ
Depth12mm
Impedance (Ohm)4 ohm
Inch1
Le0.02mH
Mag.0.05kg
ManufacturerScan-speak
Mms0.23g
Power (RMS)0-50 Watt
Re3.3Ω
Rms0.18kg/s
Sd3.8cm²
SeriesAutomotive
Size1'
TypeTweeter
Width42mm
Zn
Price Typeeach
Brand.ScanSpeak
SKU NoWES_R1904/613001_2
