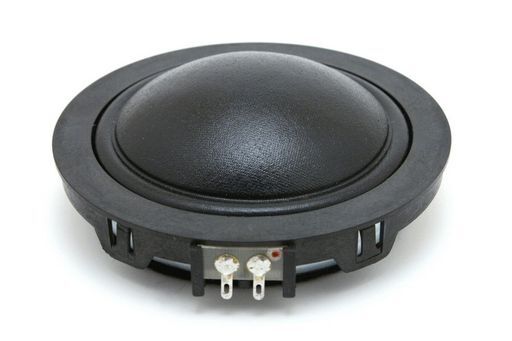

SCAN-SPEAK 3 DOME MID-RANGE DISCOVERY
76MM DOME DISCOVERY SERIES
SKU code: WES_D7608920000_1
This is a SCAN-SPEAK 3 DOME MID-RANGE DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 3 DOME MID-RANGE DISCOVERY |
| Notes | 76MM DOME DISCOVERY SERIES 76mm Dome Midrange 8ohm, Ferrite Magnet, No Faceplate. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements, plus a wealth of technical features and finesses, it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.Fast action due to low moving massHigh efficiency output 92dBInternal Ferrite MagnetProud dome gives a Wider DispersionVented / open rear-side (requires chamber)Internal grille to prevent dome from being pushed in |
| Description | 76mm Dome Midrange 8 ohm, Ferrite Magnet, No Faceplate |
| Impedance | 8Ω (Re 6.2Ω) |
| Fs | 300Hz |
| Power | 80Wrms |
| Sens. | 92.0dB |
| Qes | 2.22 |
| Qms | 7.75 |
| Qts | 1.73 |
| Cms | 0.09mm/N |
| Coil | 76mmØ |
| Depth | 20mm |
| Impedance (Ohm) | 8 ohm |
| Inch | 1 |
| Le | 0.13mH |
| Mag. | 0.6kg |
| Mms | 3.3g |
| Power (RMS) | 51-100 Watt |
| Re | 6.2Ω |
| Rms | 0.80kg/s |
| Sd | 55cm² |
| Series | Discovery |
| Size | 2' |
| Type | Midrange |
| Vas | 0.36L |
| Width | 113mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_D7608/920000_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | D7608/920000 |
| SKU | WES_D7608920000_1 |
| Brand | Scan-speak |
