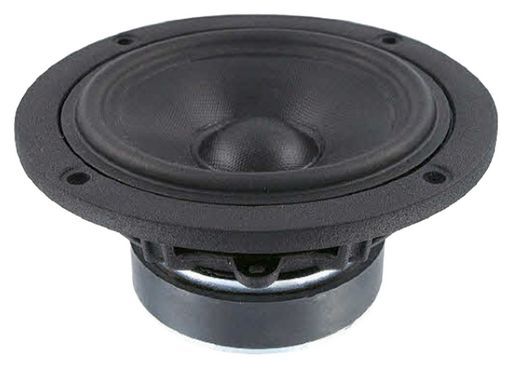

SCAN-SPEAK 4 MID-WOOFER DISCOVERY
FIBREGLASS CONE ALLOY FRAME DISCOVERY LINE
SKU code: WES_12W8524G00_1
This is a SCAN-SPEAK 4 MID-WOOFER DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 4 MID-WOOFER DISCOVERY |
| Notes | FIBREGLASS CONE ALLOY FRAME DISCOVERY LINE The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses for a tailor-made Scan-Speak solution with very good performance at a reasonable low price point. The 12W/8524G has the same frame size and should be considered as a good replacement for the PL11WH09-08 or PL11WG09-08. |
| Description | 12cm Midwoofer 8 ohm, Coated Fiberglass Cone, Ferrite Magnet |
| Type | Mid-Woofer |
| Size | 4' |
| Price Type | each |
| Power | 40Wrms |
| Coil | 25mmØ |
| Width | 124.7mm |
| Impedance | 8Ω (Re 5.7Ω) |
| Depth | 53.4mm |
| Mag. | 1kg |
| Sens. | 85.8dB |
| Re | 5.7Ω |
| Qms | 3.42 |
| Qes | 0.35 |
| Qts | 0.32 |
| Vas | 8.2L |
| Sd | 59cm² |
| Cms | 1.67mm/N |
| Fs | 52Hz |
| Mms | 5.6g |
| Zn | 8Ω |
| Le | 0.6mH |
| Rms | 0.54kg/s |
| Manufacturer | Scan-speak |
| Power (RMS) | 0-50 Watt |
| QTY | 1 |
| Page | 1 |
| Inch | 4 |
| Prms | 40W |
| Impedance (Ohm) | 8 ohm |
| Series | Discovery |
| Brand. | Scan-speak |
| SKU No | WES_12W/8524G00_1 |
