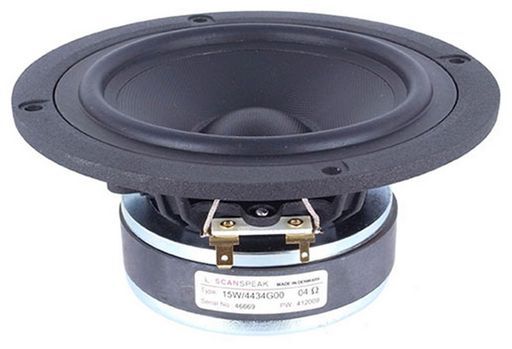

SCAN-SPEAK 5½ MID-WOOFER DISCOVERY
DISCOVERY WITH ALUMINIUM INDUCTANCE RING
SKU code: WES_15W4434G00_1
This is a SCAN-SPEAK 5½ MID-WOOFER DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 5½ MID-WOOFER DISCOVERY |
| Notes | DISCOVERY WITH ALUMINIUM INDUCTANCE RING The GF series is designed for the discerning audiophile customer. To meet the needs of this audience, several new technologies were developed with the goal of lowering distortion and damping in the speaker. The coated fibreglass cone reduces vibration and standing waves, and the vented motor system minimises power compression. The combined result is a very open and dynamic sound.Coated NRSC Fibre Glass ConeLow Damping SBR Rubber SurroundMagnet System w. Alu RingDie cast Alu Chassis vented below spider |
| Description | 15cm Midwoofer 4 ohm, Coated Fiberglass Cone, Ferrite Magnet, Alu Ring |
| Type | Mid-Woofer |
| Size | 5' |
| Price Type | each |
| Power | 60Wrms |
| Coil | 32mmØ |
| Width | 149mm |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 61.9mm |
| Mag. | 1.2kg |
| Sens. | 89.70dB |
| Re | 3.0Ω |
| Qms | 3.69 |
| Qes | 0.22 |
| Qts | 0.21 |
| Vas | 12.8L |
| Sd | 80cm² |
| Cms | 1.43mm/N |
| Fs | 43Hz |
| Mms | 9.6g |
| Zn | 4Ω |
| Le | 0.5mH |
| Rms | 0.7kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Impedance (Ohm) | 4 ohm |
| Inch | 5.5 |
| Power (RMS) | 51-100 Watt |
| Prms | 60W |
| Series | Revelator |
| Brand. | Scan-speak |
| SKU No | WES_15W/4434G00_1 |
