SCAN-SPEAK 5 MIDRANGE DISCOVERY
DISCOVERY PHASE PLUG FULL RANGE MID-RANGE 92.5DB
SKU code: WES_15M4624G00_1
This is a SCAN-SPEAK 5 MIDRANGE DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 5 MIDRANGE DISCOVERY |

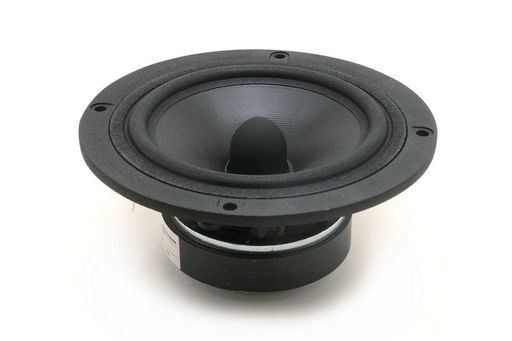

| Notes | DISCOVERY PHASE PLUG FULL RANGE MID-RANGE 92.5DB 15cm Midrange 4 ohm, Coated Fibreglass Cone, Ferrite Magnet. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.High Output 92,5dB @ 2,83VCoated NRSC Fibre Glass ConeDie cast Alu Chassis vented below spiderPhase Plug for Improved Phase LinearityVery Low Damping Foam Surround (Coated)Magnet System with Aluminium Ring |
| Description | 15cm Midrange 4 ohm, Coated Fiberglass Cone, Ferrite Magnet |
| Impedance | 4Ω (Re 4.1Ω) |
| Power | 75Wrms |
| Fs | 100Hz |
| Sens. | 92.4dB |
| Qes | 0.47 |
| Qms | 5.62 |
| Qts | 0.43 |
| Cms | 0.41mm/N |
| Coil | 25mmØ |
| Depth | 61mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 5 |
| Le | 0.23mH |
| Mag. | 1kg |
| Mms | 6.2g |
| Power (RMS) | 51-100 Watt |
| Re | 4.1Ω |
| Rms | 0.69kg/s |
| Sd | 80cm² |
| Series | Discovery |
| Size | 5' |
| Type | Midrange |
| Vas | 3.7L |
| Width | 150mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_15M/4624G00_1 |
