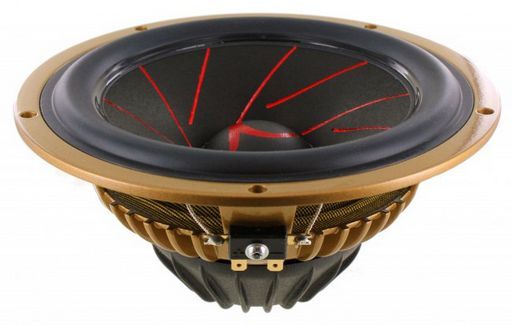

This is a SCAN-SPEAK 6” MID-WOOFER AUTOMOTIVE of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SCAN-SPEAK 6” MID-WOOFER AUTOMOTIVE
Notes AUTOMOTIVE SERIES 16cm Midwoofer 4ohm, Sliced Sandwich Cone, Neo Magnet. Features a sandwich cone with a sliced paper membrane combined with a polycarbonate rearside membrane, a brand new technology that are extremely robust, well dampened and suppresses cone breakup modes dramatically. This in combination with low-loss linear suspension and its Symmetrical Drive High-Grade Neodynium magnet offers outstanding sound performance.Scan-SpeakSandwich Cone w. SlicesHigh Grade Compact Neo magnet SystemLow Damping SBR Rubber SurroundLow-Loss linear suspensionPatented Symmetrical Drive Motor DesignRobust Die cast Aluminium Chassis
Description16cm Midwoofer 4 ohm, Sliced Sandwich Cone, Neo Magnet
Impedance4Ω (Re 3.5Ω)
Power70Wrms
Fs36Hz
Sens.90.0dB
Qes0.39
Qms3.82
Qts0.35
Vas24.0L
Cms1.12mm/N
Coil38mmØ
Depth75mm
Impedance (Ohm)4 ohm
Inch6
Le0.18mH
Mag.1.0kg
ManufacturerScan-speak
Mms16.9g
Power (RMS)51-100 Watt
Re3.5Ω
Rms1.00kg/s
Sd123cm²
SeriesAutomotive
Size6'
TypeMidwoofer
Width165mm
Zn
Price Typeeach
Brand.ScanSpeak
SKU NoWES_16W/4538G05_1
