This is a SCAN-SPEAK 7” MID-WOOFER CLASSIC of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

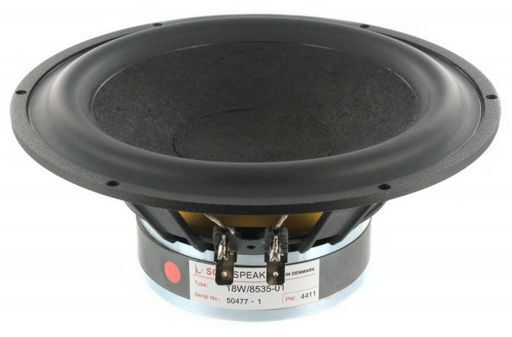

Title SCAN-SPEAK 7” MID-WOOFER CLASSIC
Notes PAPER WITH CARBON FIBRE CONE This unit is an improved version of the highly praised 18W/8535-00 mid-woofer, where a new aluminium chassis and an updated cone as well as a few other details are introduced, these updates improves mechanical stability and sound performance. High-quality magnet system design with patented Symmetric Drive(SD-1) continues to be key feature.Patented Symmetrical Drive Motor Design38mm Voice CoilLow Damping SBR Rubber SurroundCoated Air Dried Paper/Carbon Fibre ConeLow-Loss linear suspensionAluminium Chassis
Description18cm Midwoofer 8 ohm, Carbonfiber Paper Cone
Impedance8Ω (Re 6.8Ω)
Fs25Hz
Power70Wrms
Sens.87.2dB
Qes0.46
Qms2.1
Qts0.38
Cms2.30mm/N
Coil38mmØ
Depth72mm
Impedance (Ohm)8 ohm
Inch6.5
Le0.33mH
Mag.1.1kg
Mms17.2g
Power (RMS)51-100 Watt
Re6.8Ω
Rms1.33kg/s
Sd145cm²
Size6.5'
TypeMid-Woofer
Vas68.9L
Width177mm
Zn
ManufacturerScan-speak
Page1
SeriesClassic
Price Typeeach
SKU NoWES_18W/8535-01_1
