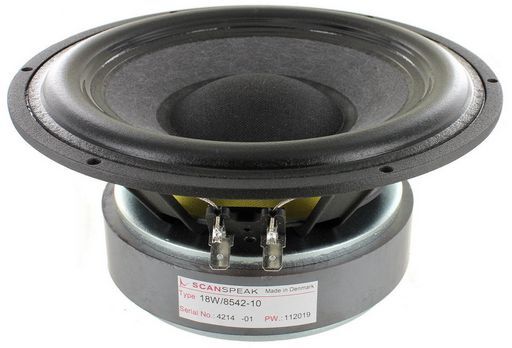

SCAN-SPEAK 7” MID-WOOFER CLASSIC
NYLON FIBRE PAPER CONE
SKU code: WES_18W8542-10_1
This is a SCAN-SPEAK 7” MID-WOOFER CLASSIC of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 7” MID-WOOFER CLASSIC |
| Notes | NYLON FIBRE PAPER CONE Very low compression foam roll surround, nylon fibre paper pulp composite cone material. The Symmetric Drive concept with copper in the magnet system was invented by Scan-Speak. This Classic series woofer is highly praised and is used in some of the worlds most exceptional high-end Loudspeakers.Patented Symmetrical Drive Motor DesignAir Dried Paper / Carbon Fibre Cone42mm Voice Coil with 13mm excursionLow-Loss linear suspensionLow Damping Coated Foam Surround |
| Description | 18cm Midwoofer 8 ohm, carbon fiber paper cone |
| Impedance | 8Ω (Re 6.6Ω) |
| Fs | 43Hz |
| Power | 70Wrms |
| Sens. | 88.0dB |
| Qes | 0.44 |
| Qms | 1.70 |
| Qts | 0.35 |
| Cms | 1.0mm/N |
| Coil | 42mmØ |
| Depth | 75mm |
| Impedance (Ohm) | 8 ohm |
| Inch | 6.5 |
| Le | 0.20mH |
| Mag. | 2.2kg |
| Mms | 13.6g |
| Power (RMS) | 51-100 Watt |
| Price Type | each |
| Re | 6.6Ω |
| Rms | 2.1kg/s |
| Sd | 135cm² |
| Size | 6.5' |
| Type | Mid-Woofer |
| Vas | 26L |
| Width | 177mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
| SKU No | WES_18W/8542-10_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 18W/8542-10 |
| SKU | WES_18W8542-10_1 |
| Brand | Scan-speak |
