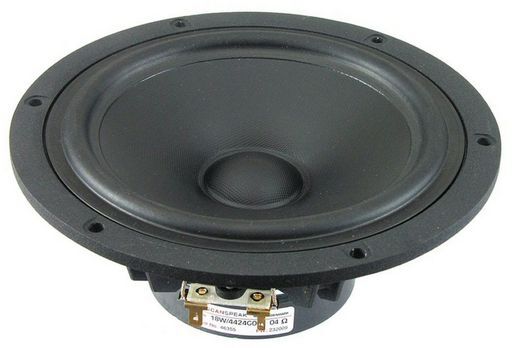

SCAN-SPEAK 7 MID-WOOFER DISCOVERY
NRSC FIBREGLASS CONE COATED
SKU code: WES_18W4424G00_1
This is a SCAN-SPEAK 7 MID-WOOFER DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 7 MID-WOOFER DISCOVERY |
| Notes | NRSC FIBREGLASS CONE COATED 18cm Midwoofer 4ohm, Coated Fiberglass Cone, Ferrite Magnet. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.High Output 91dB @ 2.83VCoated NRSC Fibreglass ConeDie Cast Aluminium Chassis, Vented Below SpiderExcellent Midrange PerformanceLow Damping SBR Rubber Surround |
| Description | 18cm Midwoofer 4 ohm, Coated Fiberglass Cone, Ferrite Magnet |
| Impedance | 4Ω (Re 4.1Ω) |
| Fs | 49Hz |
| Power | 50Wrms |
| Sens. | 90.9dB |
| Qes | 0.42 |
| Qms | 4.57 |
| Qts | 0.38 |
| Vas | 24.1L |
| Cms | 0.92mm/N |
| Coil | 25mmØ |
| Depth | 72mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 7 |
| Le | 0.47mH |
| Mag. | 1.1kg |
| Mms | 11.4g |
| Power (RMS) | 0-50 Watt |
| Re | 4.1Ω |
| Rms | 0.77kg/s |
| Sd | 137cm² |
| Series | Discovery |
| Size | 7' |
| Type | Mid-Woofer |
| Width | 180mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_18W/4424G00_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 18W/4424G00 |
| SKU | WES_18W4424G00_1 |
| Brand | Scan-speak |
