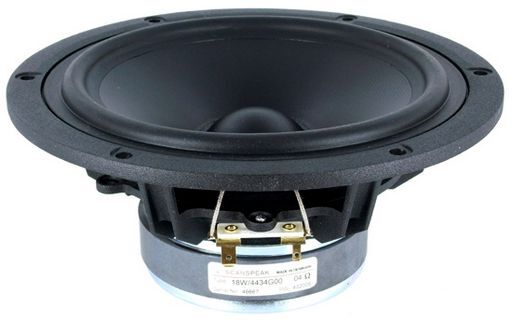

SCAN-SPEAK 7 MID-WOOFER DISCOVERY
NRSC FIBREGLASS CONE COATED
SKU code: WES_18W4434G00_1
This is a SCAN-SPEAK 7 MID-WOOFER DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 7 MID-WOOFER DISCOVERY |
| Notes | NRSC FIBREGLASS CONE COATED Designed for the discerning audiophile customer with Aluminium Chassis, Fibreglass cone, SBR rubber surround, Vented below Spider. The coated fibreglass cone reduces vibration and standing waves and the vented motor system minimises power compression. The combined result is a very open and dynamic sound.Box suggestions: 0.2 cubic foot sealed box with 20% filling for F3 of 115Hz 0.45 cubic foot box with 2 vent by 6 long for F3 of 65hz 0.6 cubic foot box with 2 vent by 4 long for F3 of 56Hz The 18W/4434G has the same frame size and should be considered as a replacement for the PL18WO09-04 or the MG18WK09-04. |
| Description | 18cm Midwoofer 4 ohm, Coated Fiberglass Cone, Ferrite Magnet, Alu Ring |
| Type | Mid-Woofer |
| Size | 7' |
| Price Type | each |
| Power | 55Wrms |
| Coil | 32mmØ |
| Width | 179.6mm |
| Impedance | 4Ω (Re 3.0Ω) |
| Depth | 73.2mm |
| Mag. | 1.3kg |
| Sens. | 91.3dB |
| Re | 3.0Ω |
| Qms | 7.81 |
| Qes | 0.37 |
| Qts | 0.35 |
| Vas | 20.7L |
| Sd | 137cm² |
| Cms | 0.79mm/N |
| Fs | 47Hz |
| Mms | 14.41g |
| Zn | 4Ω |
| Le | 0.39mH |
| Rms | 0.55kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Prms | 55W |
| Inch | 7 |
| Series | Discovery |
| Brand. | Scan-speak |
| SKU No | WES_18W/4434G00_1 |
