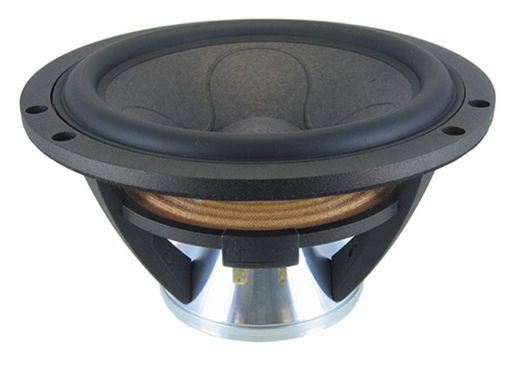

SCAN-SPEAK 7 MID-WOOFER ILLUMINATOR
NEODYMIUM UNDER-HUNG MOTOR SYSTEM
SKU code: WES_18WU4741T00_1
This is a SCAN-SPEAK 7 MID-WOOFER ILLUMINATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 7 MID-WOOFER ILLUMINATOR |
| Notes | NEODYMIUM UNDER-HUNG MOTOR SYSTEM The Illuminator midranges are a compact under-hung motor systems with large neodymium ring magnets. The patented motor offers a very long linear excursion together with a very high force factor. The back is shaped to duct the airflow around the motor and with the very open cast-aluminium chassis design the driver is virtually free from compression and any turbulence type distortions. http://data.wescomponents.com/Speakers/ScanSpeak/18wu4741t00.pdf http://data.wescomponents.com/Speakers/ScanSpeak/18wu8741t00.pdf |
| Description | 18cm Midwoofer 4 ohm, Sandwich Paper Cone, Neo Magnet |
| Type | Mid-Woofer |
| Size | 7' |
| Power | 80Wrms |
| Coil | 42mmØ |
| Width | 184mm |
| QTY | 1 |
| Impedance | 4Ω (Re 3.2Ω) |
| Depth | 97.3mm |
| Mag. | 1.7kg |
| Sens. | 87.2dB |
| Re | 3.2Ω |
| Qms | 3.56 |
| Qes | 0.32 |
| Qts | 0.29 |
| Vas | 49.4L |
| Sd | 154cm² |
| Cms | 1.49mm/N |
| Fs | 30Hz |
| Mms | 18.9g |
| Zn | 4Ω |
| Le | 0.5mH |
| Rms | 1kg/s |
| Manufacturer | Scan-speak |
| Impedance (Ohm) | 4 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 7 |
| Page | 1 |
| Prms | 80W |
| Price Type | each |
| Series | Illuminator |
| Brand. | Scan-speak |
| SKU No | WES_18WU/4741T00_1 |
