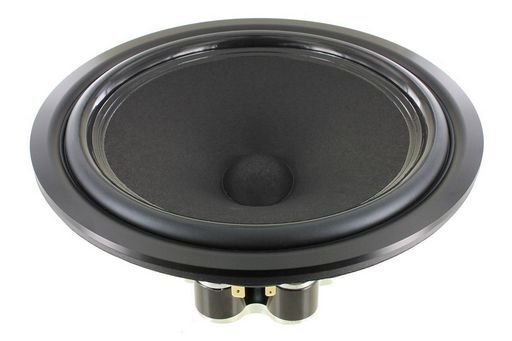

This is a SCAN-SPEAK 8 MID-WOOFER ELLIPTICOR of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title SCAN-SPEAK 8 MID-WOOFER ELLIPTICOR
Notes ELLIPTICAL VOICE COIL INNOVATION The Ellipticor family features an elliptical voice coil and magnet gap. The engineering of using elliptical-shaped voice coils is to minimise cone and dome modes and resonances. What you get is an “infinite” number of Eigen frequencies, but with less contribution for each frequency, so achieving an overall lower distortion and colouration. In combination with the powerful SD AirCirc magnet system the 21WE has high sensitivity, very low distortion, and has an extremely fast response to transients. Above all a True-To-Life sound which makes 18WE one of the very best midwoofers on the market.One of the design goals for a new driver concept at Scan-Speak was to minimize cone modes, so it was suggested to use an elliptical voice coil ! This radical idea has some interesting engineering science behind it. Driving a diaphragm symmetrically, with a circular voice coil, you get a finite number of Eigen frequencies with an energy contribution combining at certain points producing measurable colouration modes and resonances contributing to distortion and a driver introducing its own unique signature tone. The elliptical voice coil idea is to drive the diaphragm asymmetrically, so what you get is an “infinite” number of Eigen frequencies. These multiple “natural resonances” are more widely distributed producing random modes and as a result, less resonant energy contribution totally overall. This achieves lower distortion with less colouration node energy and thus improving desired audible results by reducing the drivers 2nd order harmonics and excellent 3rd order harmonics improvement. In combination with the powerful SD AirCirc magnet system the Ellipticor Series has high sensitivity, very low distortion, and has an extremely fast response to transients. Above all a True-To-Life sound which makes Ellipticor one of the very best drivers ever available.Elliptic voice coilVery low mechanical lossesHigh sensitivity (SPL)AirCirc optimized magnet systemUniquely low distortion, Life like soundFlexible appearance with replaceable decor ring
Description~21cm Elliptical Midwoofer, 4 ohm, Paper Cone, Neo, AirCirc
Impedance4Ω (Re 4.3Ω)
Fs38Hz
Power50Wrms
Sens.93.5dB
Qes0.30
Qms5.43
Qts0.28
Vas54.0L
Cms0.70mm/N
Coil35-45mmE
Depth97mm
Impedance (Ohm)4 ohm
Inch8
Le0.10mH
Mag.1.8kg
ManufacturerScan-speak
Mms25g
Power (RMS)0-50 Watt
Re4.3Ω
Rms1.10kg/s
Sd233cm²
SeriesEllipticor
Size8'
TypeMid-Woofer
Width222mm
Zn4Ω
Price Typeeach
Brand.ScanSpeak
SKU NoWES_21WE/4542T00_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN 21WE/4542T00
SKU WES_21WE4542T00_1
Brand Scan-speak
