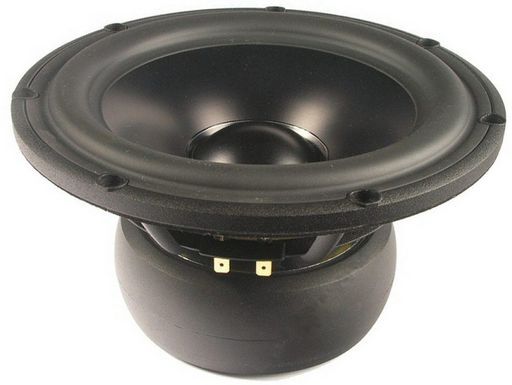

SCAN-SPEAK 8 SUB-WOOFER REVELATOR
SCAN-SPEAK 8 SUB-WOOFER REVELATOR
SKU code: WES_22W8857T00_1
This is a SCAN-SPEAK 8 SUB-WOOFER REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 8 SUB-WOOFER REVELATOR |
| Notes | The latest generation of the Revelator woofers incorporates a new aluminium cone design, resulting in an impressive transient response. A metal cone also affords very high power with minimal cone breakup. The output is incredibly natural sounding bass that challenges the listener to tell the difference between the real thing and this drivers faithfully invisible reproduction. Utilises the patented technology with Low loss linear suspension, SD-1 motor system and aluminium cone. |
| Description | 22cm Woofer 8 ohm, Alu Cone, Ferrite Magnet |
| Type | Woofer |
| Size | 8' |
| Price Type | each |
| Power | 170Wrms |
| Coil | 50mmØ |
| Width | 222mm |
| Impedance | 8Ω (Re 6.2Ω) |
| Depth | 111mm |
| Mag. | 3.6kg |
| Sens. | 86.0dB |
| Re | 6.2Ω |
| Qms | 4.9 |
| Qes | 0.32 |
| Qts | 0.3 |
| Vas | 87.7L |
| Sd | 220cm² |
| Cms | 1.29mm/N |
| Fs | 23Hz |
| Mms | 37g |
| Zn | 8Ω |
| Le | 0.35mH |
| Rms | 1.09kg/s |
| Manufacturer | Scan-speak |
| QTY | 1 |
| Page | 1 |
| Power (RMS) | 151-200 Watt |
| Prms | 170W |
| Inch | 8 |
| Impedance (Ohm) | 8 ohm |
| Series | Revelator |
| Brand. | Scan-speak |
| SKU No | WES_22W/8857T00_1 |
