This is a SCAN-SPEAK 8 WOOFER - CLASSIC SERIES of brand Scan-speak.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

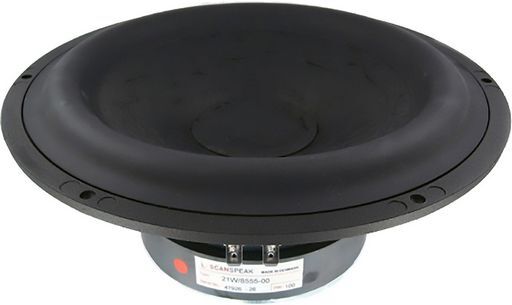

Title SCAN-SPEAK 8 WOOFER - CLASSIC SERIES
Notes Hard paper cone is very rigid and perfect for bass reproduction. A special coating provides sufficient damping to ensure minimum resonances in the bass area. Low loss, linear suspension reduces compression and gives maximum dynamic capability and detailing. The “SD-1” magnet system and the voice coil with copper wire wound on a Kapton foil gives high SPL and low clipping distortion. 21W/8555-00 is magnesium frame 21W/8555-10 is aluminium frame
Description22cm Midwoofer 8 ohm, Carbonfiber Paper Cone, Magnesium frame
TypeWoofer
Size8'
Price Typeeach
Power100Wrms
Coil42mmØ
Width222mm
Impedance8Ω (Re 5.5Ω)
Depth83mm
Mag.2.2kg
Sens.87dB
Re5.5Ω
Qms4.5
Qes0.33
Qts0.31
Vas134L
Sd220cm²
Cms1.98mm/N
Fs20Hz
Mms32g
Zn
Le0.40mH
Rms0.89kg/s
ManufacturerScan-speak
QTY1
Prms100W
Freq.20Hz
Power (RMS)51-100 Watt
Inch8
Impedance (Ohm)8 ohm
SeriesClassic
Brand.Scan-speak
SKU NoWES_21W/8555-00_2
