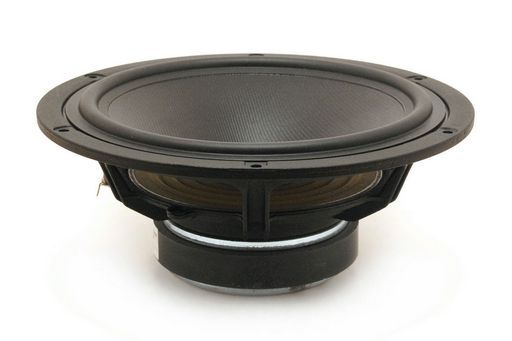

SCAN-SPEAK 8 WOOFER DISCOVERY
NRSC FIBREGLASS CONE COATED
SKU code: WES_22W4534G00_1
This is a SCAN-SPEAK 8 WOOFER DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 8 WOOFER DISCOVERY |
| Notes | NRSC FIBREGLASS CONE COATED 22cm Woofer 4ohm, Coated Fiberglass Cone, Ferrite Magnet, Alu Ring. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point.High Output 92,5dB @ 2,83VCoated NRSC Fibre Glass ConeLow Damping SBR Rubber SurroundLow Resonance Freq. 30HzMagnet System w. Alu RingDie cast Alu Chassis vented below spider |
| Description | 22cm Woofer 4 ohm, Coated Fiberglass Cone, Ferrite Magnet, Alu Ring |
| Impedance | 4Ω (Re 3.7Ω) |
| Fs | 30Hz |
| Power | 70Wrms |
| Sens. | 92.4dB |
| Qes | 0.37 |
| Qms | 3.70 |
| Qts | 0.34 |
| Vas | 95.0L |
| Cms | 1.23mm/N |
| Coil | 38mmØ |
| Depth | 85mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 8 |
| Le | 0.33mH |
| Mag. | 2.1kg |
| Mms | 23.7g |
| Power (RMS) | 51-100 Watt |
| Re | 3.7Ω |
| Rms | 1.19kg/s |
| Sd | 235cm² |
| Series | Discovery |
| Size | 8' |
| Type | Woofer |
| Width | 225mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_22W/4534G00_1 |
