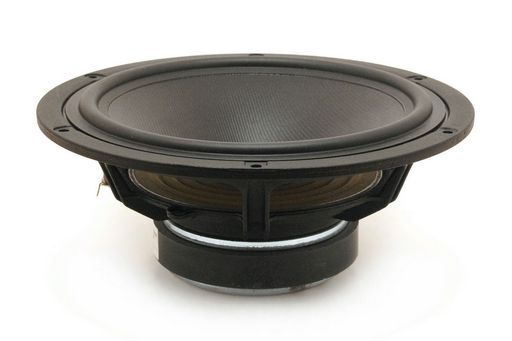

SCAN-SPEAK 8 WOOFER DISCOVERY
DISCOVERY
SKU code: WES_22W8534G00_1
This is a SCAN-SPEAK 8 WOOFER DISCOVERY of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 8 WOOFER DISCOVERY |
| Notes | DISCOVERY 22cm Woofer 8ohm, Coated Fiberglass Cone, Ferrite Magnet, Alu Ring. The GF series is designed for the discerning audiophile customer. To meet the needs of this audience, several new technologies were developed with the goal of lowering distortion and damping in the speaker. The coated fiberglass cone reduces vibration and standing waves, and the vented motor system minimizes power compression. The combined result is a very open and dynamic sound.High Output 89dB @ 2,83VCoated NRSC Fibre Glass ConeLow Damping SBR Rubber SurroundLow Resonance Freq. 30HzMagnet System w. Alu RingDie cast Alu Chassis vented below spider The 22W/8534G has the same frame size and should be considered as a replacement for the PL22WO09-08 or the MG22WO09-08. |
| Description | 22cm Woofer 8 ohm, Coated Fiberglass Cone, Ferrite Magnet, Alu Ring |
| Impedance | 8Ω (Re 6.8Ω) |
| Fs | 30Hz |
| Power | 70Wrms |
| Sens. | 88.8dB |
| Qes | 0.43 |
| Qms | 4.14 |
| Qts | 0.39 |
| Vas | 94.2L |
| Cms | 1.22mm/N |
| Coil | 38mmØ |
| Depth | 85mm |
| Impedance (Ohm) | 8 ohm |
| Inch | 8 |
| Le | 0.56mH |
| Mag. | 2.1kg |
| Mms | 23.1g |
| Power (RMS) | 51-100 Watt |
| Re | 6.8Ω |
| Rms | 1.05kg/s |
| Sd | 235cm² |
| Series | Discovery |
| Size | 8' |
| Type | Woofer |
| Width | 225mm |
| Zn | 8Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_22W/8534G00_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 22W/8534G00 |
| SKU | WES_22W8534G00_1 |
| Brand | Scan-speak |
