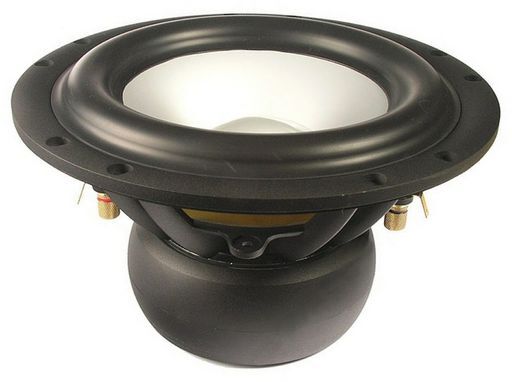

SCAN-SPEAK 9” SUB-WOOFER REVELATOR
ALUMINIUM CONE WHITE
SKU code: WES_23W4557T00_1
This is a SCAN-SPEAK 9” SUB-WOOFER REVELATOR of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | SCAN-SPEAK 9” SUB-WOOFER REVELATOR |
| Notes | ALUMINIUM CONE WHITE The Revelator woofers and sub-woofers features very rigid cones in paper or aluminium that operates as a piston over a wide frequency range, in combination with Scan-Speaks linear suspension and the patented Symmetrical Drive (SD-1) it results in very low distortion and a smooth and well behaved frequency response as well as perfect transient reproduction.Patented Symmetrical Drive Motor DesignLong Throw SurroundFerrite Magnet System w. Rubber BootSilver Anodized Rigid Alu ConeDie cast Alu Chassis vented below spiderGold Binding Post Terminals |
| Description | 23cm Subwoofer 4 ohm, Silver Alu Cone, Ferrite Magnet |
| Fs | 21Hz |
| Impedance | 4Ω (Re 4.5Ω) |
| Power | 225Wrms |
| Sens. | 82dB |
| Qes | 0.52 |
| Qms | 4.80 |
| Qts | 0.47 |
| Vas | 45.0L |
| Cms | 0.60mm/N |
| Coil | 50mmØ |
| Depth | 135mm |
| Impedance (Ohm) | 4 ohm |
| Inch | 9 |
| Le | 0.45mH |
| Mag. | 4.6kg |
| Mms | 101g |
| Power (RMS) | 200+ Watt |
| Re | 4.5Ω |
| Rms | 2.71kg/s |
| Sd | 232cm² |
| Series | Revelator |
| Size | 9' |
| Type | Subwoofer |
| Width | 255mm |
| Zn | 4Ω |
| Manufacturer | Scan-speak |
| Price Type | each |
| SKU No | WES_23W/4557T00_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | 23W/4557T00 |
| SKU | WES_23W4557T00_1 |
| Brand | Scan-speak |
