This is a replacement part for Shangfang. It is suitable for Shangfang - Refrigeration Equipment.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

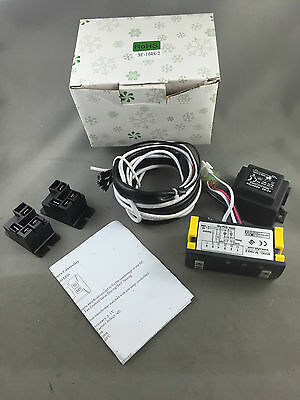

Title SHANGFANG Digital Temperature Controller SF-104S-2 ADJUSTABLE
Notes DIGITAL CONTROLLER FOR COOL ROOMS CHILLERS
SF-104S-2
COMES WITH A PROBE
2X SOLID STATE RELAYS , 1X 12 VOLT TRANSFORMER
WIRING TREE BETWEEN CONTROLLER AND RELAY, SENSOR
CAN REPLACE DIXELL , CAREL CONTROLLER
Brand new
-40C to 95C adjustable
30 Amp switching capacity for the compressor
30 Amp switching capacity for the fan
230V AC, 50HZ
Quite simple to set it up and program
It can be used for commercial fridges, cool rooms , chiller
Dimension:77(Length)×35(Width)×70(Depth)mm
Parameter
Function
Set range
Default
E1
Lower setpoint limit
-45
o
C/40
o
F to Set temp.
-35
o
C/-31
o
F
E2
Higher setpoint limit
Set temp. to 45
o
C/120
o
F
20
o
C/68
o
F
E3
Temp.Hysteresis
1 to 10
o
C/1 to 18
o
F
4
o
C/7
o
F
E4
Comp.start delay time
0 to 10Min
2Min
E5
Offset on room temp.
-5 to 5
o
C/
o
F
0
E6
Offset on evap.Temp.
-5 to 5
o
C/
o
F
0
C1
Temperature unit
0=
o
C 1=
o
F
0
F1
Max.Defrost duration
1 to 60Min
20Min
F2
Defrost interval time
0 to 24Hr
6Hr
F3
Defrost termination temp.
0 to 20
o
C/32 to 68
o
F
8
o
C/46
o
F
F4
Display during defrost
0=Normal display
1=Last value before defrost
0
F5
Fan operating function
0=Parallel with comp.
1=Continuous running except defrost
0
FOR FURTHER INFO:
http://www.temperature-control.cn/products_detail/&productId=9043f1a7-1910-4764-a87e-c6106f326d71.html
Suitable BrandShangfang
Suits toSF-104S-2
ModelSF-104S-2
MPNSF-104S-2
BrandSHANGFANG SF-104S-2
UPCDoes not apply
SKU NoEBY_263768667544
