This is a replacement part for Shangfang. It is suitable for Shangfang - Fridges & Freezers.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

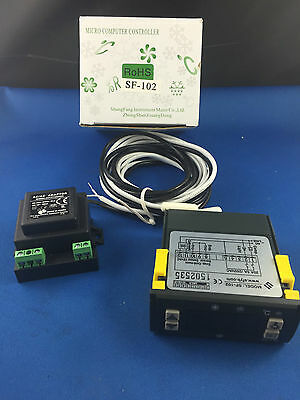

Title SHANGFANG SF-102 COOL ROOM FRIDGE DIGITAL CONTROLLER
Notes DIGITAL CONTROLLER FOR COOL ROOMS CHILLERS
SF-102
COMES WITH A PROB
1X 12 VOLT TRANSFORMER
WIRING TREE BETWEEN CONTROLLER AND 2 X PROBES
CAN REPLACE DIXELL , CAREL CONTROLLER
Brand new
-40C to 95C adjustable
30 Amp switching capacity for the compressor
30 Amp switching capacity for the fan
230V AC, 50HZ
Quite simple to set it up and program
It can be used for commercial fridges, cool rooms , chiller
Dimension:77(Length)×35(Width)×70(Depth)mm
Parameters
Parameter
Function
Set range
Default
E1
Lower setpoint limit
－45℃/－40℉～Set temp.
－35℃/－31℉
E2
Higher setpoint limit
Set temp.～45℃/120℉
20℃/68℉
E3
Temp.Hysteresis
1～10℃/1～18℉
4℃/7℉
E4
Comp.start delay time
0～10Min
2Min
E5
Offset on room temp.
－5～5℃/℉
0
E6
Offset on evap.Temp.
－5～5℃/℉
0
F1
Max.Defrost duration
1～60Min
20Min
F2
Defrost interval time
0～24Hr
6Hr
F3
Defrost termination temp.
0～20℃/32～68℉
8℃/46℉
F4
Display during defrost
0=Normal display
1=Last value before defrost
0
C1
Temperature unit
0=℃ 1=℉
0
Suitable Brand Shangfang
Suitable Applicance Class Fridge
Suits to SF-102
Model SF-102
MPN SF-102
Brand SHANGFANG SF-104S-2
UPC Does not apply
SKU No EBY_263768679456



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU EBY_263768679456
Barcode # 2000000001661
Brand Universal
