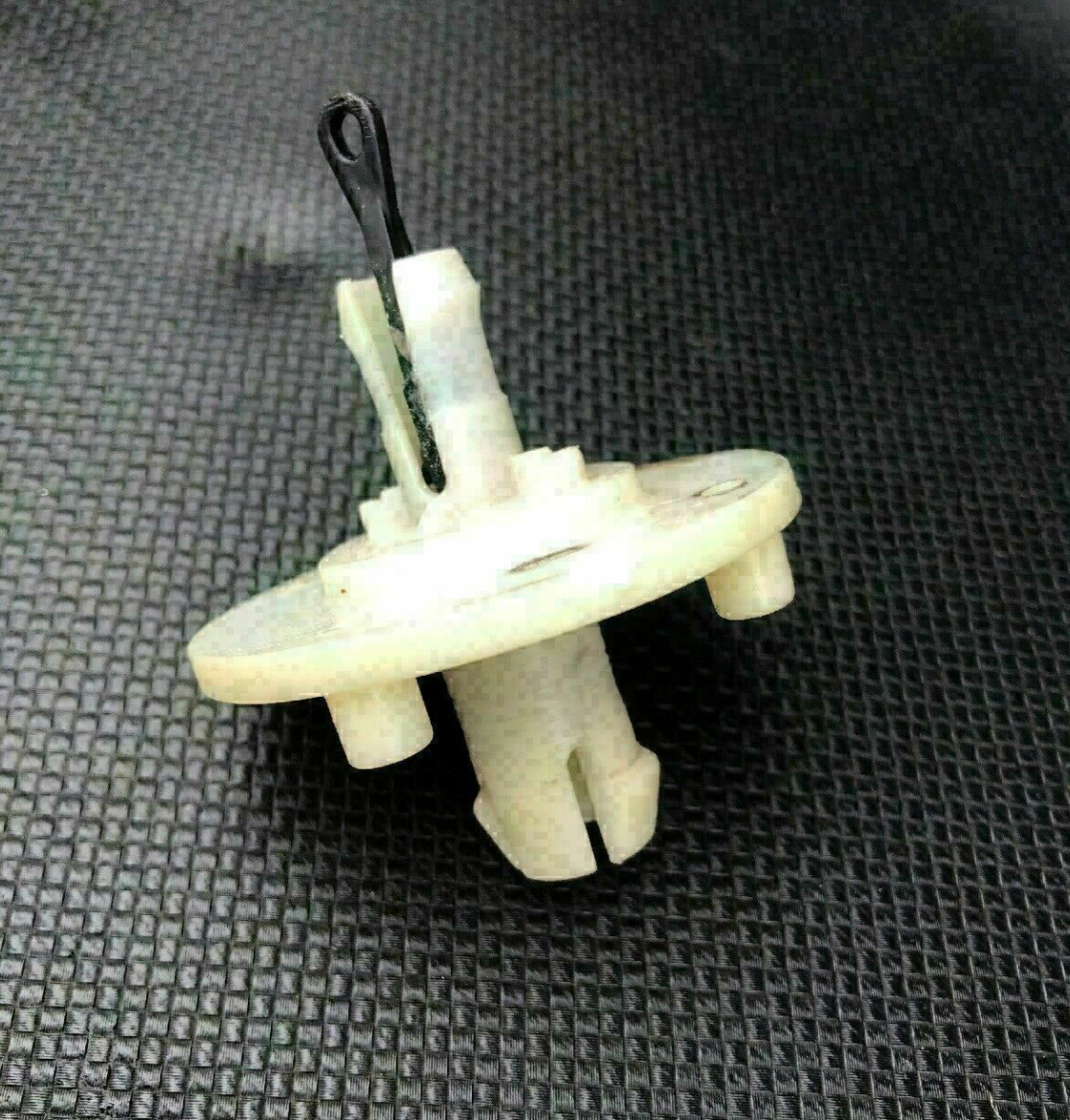

Simpson Westinghouse Clothes Dryer Rear Drum Support And Spigot Kit

This is a replacement rear drum support and spigot kit for Simpson, Westinghouse and Electrolux vented clothes dryers. The spigot is the short shaft at the centre of the rear of the drum, and the support is the bearing surface it turns in. Together they carry the back of the drum and keep it running true. They are a wearing part, and once worn the drum drops, drags on the rear bulkhead and gets noisy.

Part Numbers

0012377009K, 0012377009

OEM Genuine

This is an OEM genuine part. It is made by the original equipment manufacturer, the same company in the same factory that made the part fitted to your appliance when it was built, and it carries their part number. It is supplied to us without the appliance brand retail packaging, and that is the only reason it costs less than a boxed part bought from the brand. The part itself is the same part.

Suitable Brands

Simpson, Westinghouse, Electrolux

Suitable Models

Suits Simpson, Westinghouse and Electrolux vented clothes dryers that use a centre rear spigot and support. Compare the spigot length and the support diameter against your existing parts, or check the part number on your dryer parts diagram, before ordering.

When To Replace

Replace the kit when the dryer rumbles, grinds or squeals while the drum turns, when the drum can be pushed up and down or side to side by hand more than a few millimetres, when there are wear marks or metal dust on the rear bulkhead where the drum has been rubbing, or when the drum is stiff to turn by hand with the belt removed. A worn rear support puts extra load on the belt and the motor, so it is worth fixing early.

Fitting

Isolate the dryer at the power point before starting. Remove the front or rear panel depending on the model, take the tension off the belt and lift the drum out. Drive or press the old spigot out of the rear of the drum and remove the old support from the bulkhead. Fit the new support, refit the spigot squarely so the drum sits centred, then refit the drum and belt, check the drum spins freely by hand, and run a short cycle empty before loading it.

Notes

Replace the belt at the same time if it is glazed, cracked or has been slipping. A dryer that has been running on a worn rear support has usually been chewing the belt as well.
