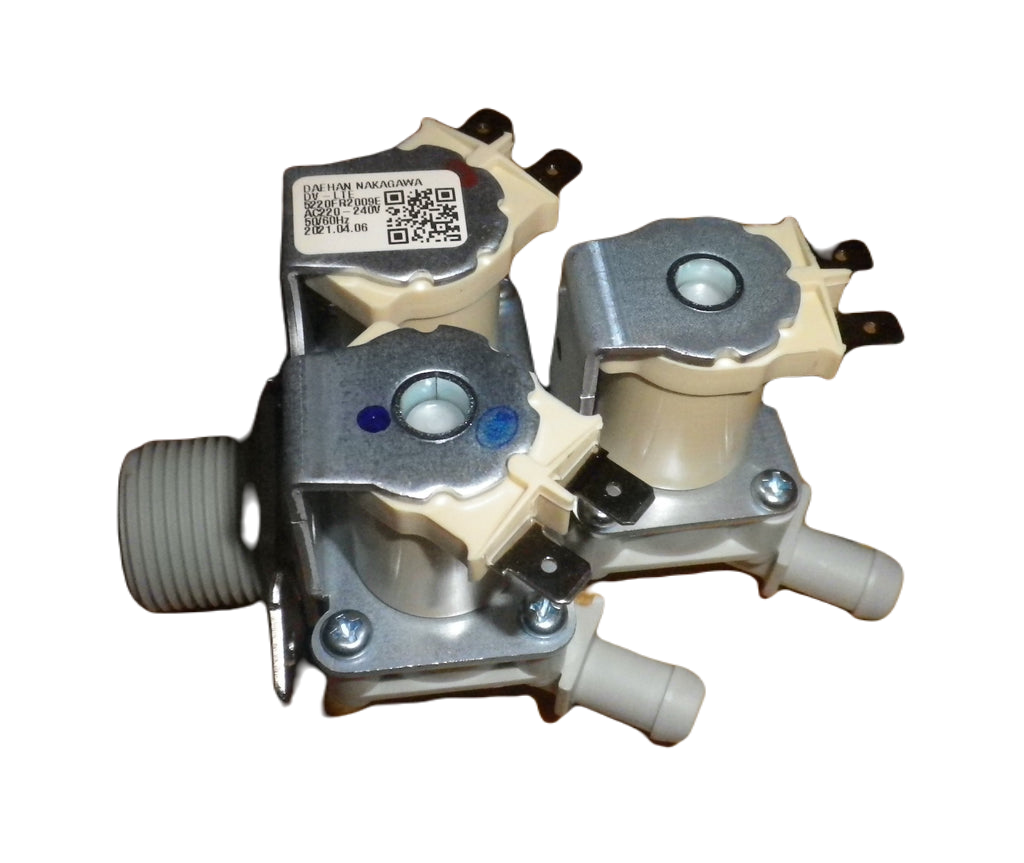

This is a replacement Triple Outlet 10mm Straight Inlet Valve for LG. It is suitable for replacing spare parts with 5220FR2009E part number for Universal Washing Machines.

SALIN is a leading Australian appliance spare parts distributor specializing in UNIVERSAL applicances. We take pride in our ability to bring hard-to-find UNIVERSAL spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our UNIVERSAL range is genuine.

TECHNICAL SHEET
Part No5220FR2009E
NotesTriple Outlet 10mm Straight Through Single Inlet Water Solenoid Valve.Part No. 5220FR2009E. Similar to LG 5221EN2003A, 5220FR2009S, 5220FR2009F, 5220FR2075B, WV028.Outlets suit 10mm hose. Inlet is standard 3/4' BSP standard tap thread (actual thread diameter 1').This solenoid valve is a suitable replacement for the triple valve used in some LG front loading washing machines including models WD13050SD, F1069FD4F, F1069FD6F, F1069FD7F, F1069FDF, FH069FD2F, FH069FD4P, FH069FD6L, FH069FD7P, FH069FDF, FH069FDL, FH069FDP, FH0C7FD3, FH0C7FD4.The metal mounting bracket is removable.Flow rate 10litre/min. The #1 outlet has an additional flow restrictor installed. This flow restrictor is different to similar LG valves.240VAC solenoids. 6.4mm spade terminals
TitleTriple Outlet 10mm Straight Inlet Valve for LG For F1069FD7F Washing Machines
CategoryAppliance Spares > Washer & Dryer > Washing Machines
Replacement ItemTriple Outlet 10mm Straight Inlet Valve for LG
Replacing Parts✔ 5221EN2003A
✔ 5220FR2009S
✔ 5220FR2009F
✔ 5220FR2075B
✔ WV028
Suitable Models✔  WD13050SD
✔  F1069FD4F
✔  F1069FD6F
✔  F1069FD7F
✔  F1069FDF
✔  FH069FD2F
✔  FH069FD4P
✔  FH069FD6L
✔  FH069FD7P
✔  FH069FDF
✔  FH069FDL
✔  FH069FDP
✔  FH0C7FD3
✔  FH0C7FD4
SKU NumberFIT_0003927_001_00004



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN
SKU FIT_0003927_001_00004
Brand LG
Shipping Weight 1.0000kg
