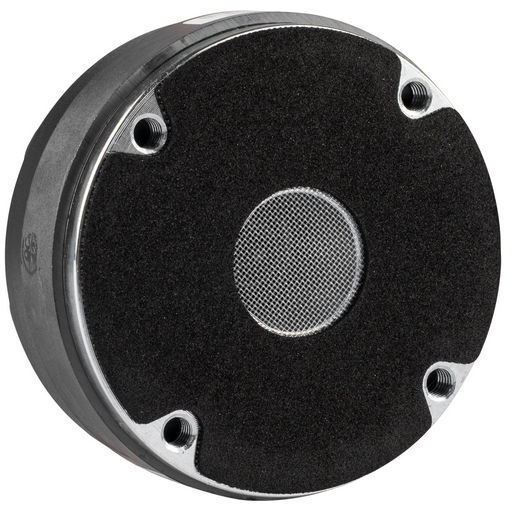

This is a TYMPHANY 1 TITANIUM DOME COMPRESSION DRIVER of brand Tymphany.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title TYMPHANY 1 TITANIUM DOME COMPRESSION DRIVER
Notes This 1.4 inch diaphragm 1inch exit compression driver is for use in high quality sound reinforcement systems. The polyimide surround allows reliable operation in 2 way systems with lower crossover points. The titanium diaphragm is coated with a light, thin layer of unique damping material giving the driver an unusually smooth sound. All of the materials resist environmental factors of heat, vibration and aging ensuring many years of stable performance.Proprietary coating on titanium diaphragm promotes a detailed yet non-fatiguing high frequency response107.8 dB efficiency: high output relative to minimal input powerSmooth response from an exceptionally low 1,500 Hz all the way to 17,000 HzPolyimide surround provides durability and additional damping for natural sound quality
OEMDFM-2535R00-08
Impedance8Ω (Re 6.46Ω)
Power30W
Sens.107.7dB
Fs746Hz
Qms5.66
Qes0.97
Qts0.83
Vas0.01
Re6.46Ω
Zn
Depth50.8mm
Diam.90mmØ
Le0.03mH
ManufacturerTymphany
Mms0.5g
Cms0.0867mm/N
Coil35.5mm
SKU NoWES_DFM-2535_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN DFM-2535
SKU WES_DFM-2535_1
Brand Tymphany
