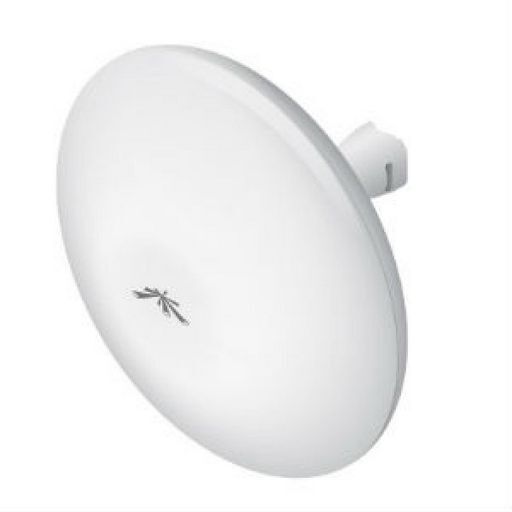

This is a Ubiquiti NanoBeam 2AC 13dBi 2.4GHz 802.11n MIMO antenna, 150+ Mbps, Range 10+ km of brand Ubiquiti.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title Ubiquiti NanoBeam 2AC 13dBi 2.4GHz 802.11n MIMO antenna, 150+ Mbps, Range 10+ km
Notes The Ubiquiti NanoBeam 2AC NBE-2AC-13 directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. The Ubiquiti NanoBeam 2AC NBE-2AC-13 feature is especially important in an area crowded with other RF signals of the same or similar frequency. Innovative Mechanical Design for the Ubiquiti NanoBeam 2AC NBE-2AC-13  Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.  Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.  Easy removal The antenna feed can be detached with the push of a button. Corrosion Resistance  Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners. Ubiquiti NanoBeam 2AC NBE-2AC-13 SPECIFICATION Processor Specs: Atheros MIPS 74Kc, 560 MHz Memory: 64 MB DDR2, 8 MB Flash Operating Frequency: 2412 - 2472 MHz Worldwide Net. Interface: (1) 10/100/1000 Ethernet Port Gain: 13 dBi High Gain Antenna Polarization: Dual Linear Max. Power Consumption: 8.5W Dimensions: 189 x 189 x 125 mm Weight: 0.530 kg Power Supply (PoE): 24V, 0.5A PoE Included Australian power cable Mounting: Pole-Mount (Kit Included), Wall-Mount Operating Temperature: -40 to 80° C Operating Humidity: 5 to 95% Noncondensing
DescriptionUbiquiti NanoBeam 2AC 13dBi 2.4GHz 802.11n MIMO antenna, 150+ Mbps, Range 10+ km
UPC810354024627
SeriesairMAX CPE
Brand.Ubiquiti
ManufacturerUbiquiti
SKU NoWES_NBE-2AC-13_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN NBE-2AC-13
SKU WES_NBE-2AC-13_1
Brand Ubiquiti
