This is a replacement bearing.

SALIN is a leading Australian appliance spare parts distributor. We take pride in our ability to bring hard-to-find spare parts into the Australian market. We are proudly Australian-owned and operated. Our sales office is conveniently located in Sydney, NSW. Most of our range is genuine.

TECHNICAL SHEET

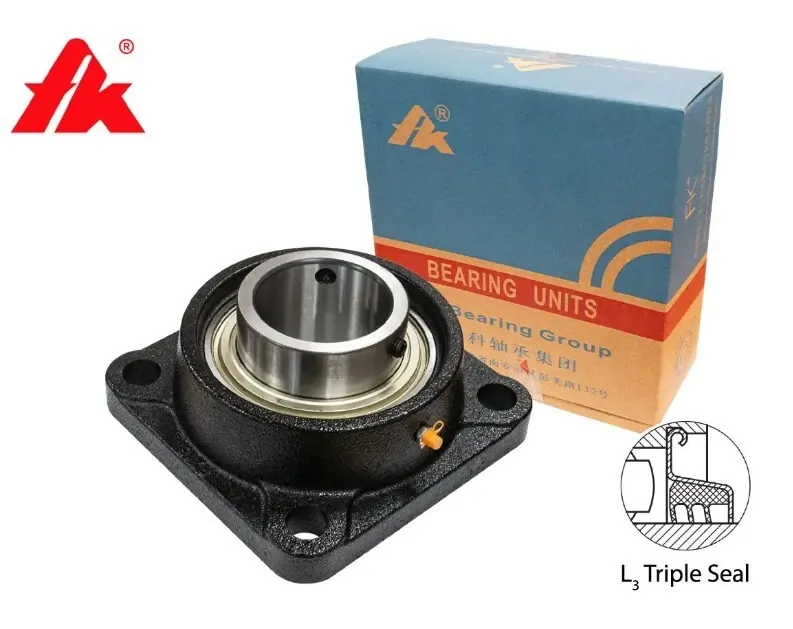

TitleUCFX06-L3 HEAVY DUTY METRIC FLANGE SQUARE BLOCK BEARING 30MM
Replacement ItemBearing
Country of OriginChina
MPNUCFX06-L3
Bore Diameter30 mm
Compatible BrandsUniversal
Notes
TMSF30 HEAVY DUTY METRIC FLANGE BLOCK 30mm
UCFX06-L3
FK - Heavy Duty - Self Aligning Bearing. Ideally suited for Agricultural, & Industrial applications, manufactured in accordance with ISO9001 standards.


Reference

UCFX06-3RS

Shaft

30

Length -mm (a)

117

Bolt Centre's - mm (e)

92

Base to Center - mm (i)

19

Base Height - mm (g)

14.3

Housing Height - mm (l)

34

Bolt Hole dia -mm (s)

16

Overall Height - mm (Z)

44.4

Basic Load Rating (kg)

2030

Basic Static Load (Kg

1400

Weight (Kg)

1.46

Commodity Code

84832000
