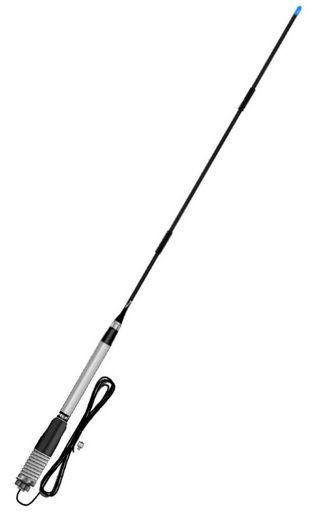

This is a UHF ELEVATED FEED ANTENNA 6.5dB 810mm of brand MobileOne.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title UHF ELEVATED FEED ANTENNA 6.5dB 810mm
Notes The RF470MSMEGA is a dipole antenna commonly known as a Raised Feed. This antenna is the most popular of all UHF CB antennas due to its high gain and short length. The RF470MSMEGA is strong, almost indestructible as it has no soldered internals that can break but rather is modular made up of parts that fit together and all are replaceable. One of the key features of the RF470MSMEGA is the ability of using a large range of different antenna tops allowing for different colours, lengths and gains.The RF470MSMEGA has a solid Stainless Steel 1/4 wave tube that is its own tuned ground plane so it is not needed to be earthed in any way and also allows the antenna to be placed in almost any location. It is usually supplied with 4.3 metres of excellent quality RG58CU coax, which is enough to mount in most locations on a vehicle, and is provided with a PL259 solder type connector.The antenna top of the RF470MSMEGA is a M475HD which is a 7mm thick solid fiberglass collinear which is far thicker and stronger than many similar antennas.Type: Raised Feed DipolePattern: OmnidirectionalTotal Length: 1125mm or 44Total Weight: 680gramsBase Length: 270mm or 11Base Weight: 460gramsImpedance: 50ΩTuning: Factory presetFrequency: 470MHz ~ 482MHzGain Send: 7dBiGain Receive: 5dBiVSWR: < 15:1 over 12MHzMax Power: 200WattsMounting: 1/2 BSW StudCable: 43Mtrs RG58CU 50ΩConnector: PL259S Supplied
Base1/2' UNF Stud
Gain6.5dB
Length1125mm
Type477MHz
Cable4.3M RG58CU 50ohm
ConnectorPL259
Frequency470MHz - 482MHz
Impedance50Ω
OEMRF470FWSS
PlugPL259
Power200W max.
ManufacturerMobileOne
SKU NoWES_RF470MSMEGA_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN RF470MSMEGA
SKU WES_RF470MSMEGA_1
Brand MobileOne
