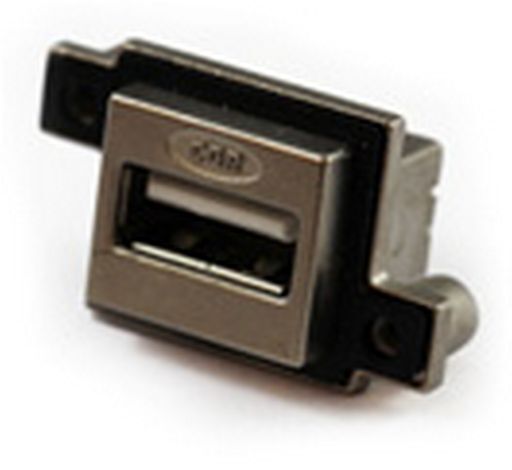

This is a .USB 2.0 JACK of brand Chogori.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET
Title .USB 2.0 JACK
Notes SOLDER PINS REAR Panel Mount with PCB layout. Square cut-out hole 14x16mm. Alloy faced (Kirsite).480Mbps USB2.0Rhombus Panel Mount
DescriptionUSB rhombus PCB panel mount(kirsite)
Contact4
Speed480Mbps
Mechanical Life1500 mating cycles
IPIP67
Operating Temperature-45 ~ +85
Rated Current1.5A
Breakdown Voltage500Vac / 1min
Contact Resistance≤ 30mΩ Max
Insulation Resistance≥ 1000MΩ Min
Chogori Cat Page116
ManufacturerChogori
SKU NoWES_34000000-06_1
