This is a VGA MATRIX WITH AUDIO - SMART VIEW of brand SmartView.

SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.

TECHNICAL SHEET

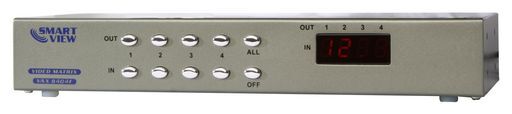

Title VGA MATRIX WITH AUDIO - SMART VIEW
Notes 250 MHz pixel frequency. Intelligent functionality allows multiple audio/video inputs to display diverse images on multiple screens. Selection can be made from any source input. Supports DDC, DDC2, DDC2B, RGBHV, RGsB & RGBS, TTL or 1 Vpp level, 250 MHz, 1920 x 1440 60Hz. Can be cascaded. HD-15 Female connectors for video and 3.5mm sockets for audio input. Supplied with 12VDC power adaptor. Video matrix is ideal for Testing, Data centre, Help desks, Video broadcasting, Presentation & Educational facilities. Rack mounting bracket only for the larger SMV1744 model.FEATURESIntelligent functionality.Can be cascaded.With 250 MHz pixel frequency.Max. resolution 1920 x 1440 60Hz.Extends the video signal up to 65 metre.Audio frequency response 20Hz to 20K Hz.The output is compatible with standard VGA card.HD-15 Female Connector for video input / Output.3.5mm sockets for audio input / output.Supports the DDC, DDC2, DDC2B. (For video out port 1 and 2).Supports multi-synchronous video type include RGBHV, RGsB & RGBS.Supports Synchronous include Positive, Negative; TTL or 1 Vpp level.
Size269x108x42mm
Inputs4x VGA
Outputs4x VGA
ManufacturerSmartView
SKU NoWES_SMV1744_1



SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.

All electrical items must be fitted by a qualified electrician.

Errors and Omissions Excepted:

All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN  for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

Legal Disclaimer:

All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.

MPN SMV1744
SKU WES_SMV1744_1
Brand SmartView
