VGA OVER CAT5 EXTENDER - CYPRESS
TRANSMITTER REQUIRES RECEIVER
SKU code: WES_CA-COMP50R_1
This is a VGA OVER CAT5 EXTENDER - CYPRESS of brand Cypress.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | VGA OVER CAT5 EXTENDER - CYPRESS |

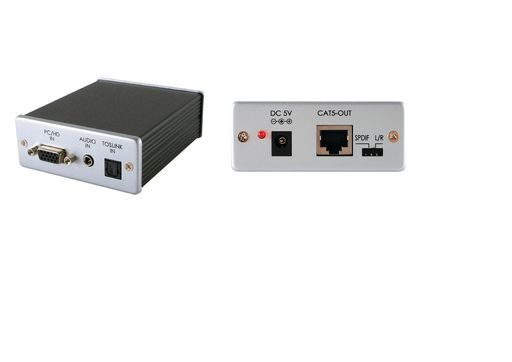

| Notes | TRANSMITTER REQUIRES RECEIVER This PC/HD audio over CAT5 extends PC/HD & audio signal quick and easily. It features a transmitter with a VGA input connector, a 3.5mm audio input connector and a Toslink digital audio input connector. There are two suitable receiver units available providing a range of up to 50m (CA-COMP50R) and 100 metres (CA-COMP100R). Plug and Play.Supports PC/RGB and HD/YCbCr/YPbPr format input. Supports CAT-5/CAT-5E/CAT-6 cable. Supports high definition (HD) input source up to 1080P. Supports PC output source up to UXGA. Supports Dolby® AC3/PCM 2CH Toslink output audio. Supports Dolby® AC3/PCM 2CH Toslink input audio. Easy to install and simple to operate. |
| Description | PC/Component over CAT5 Receiver at 50 Metres |
| Max. | 50M |
| Input | CAT5 |
| Output | D-Sub 15pin / 3.5mm & Toslink Audio |
| Interface | Receiver |
| Compliance | RGB/YUV |
| Max Res. | UXGA / 1080p |
| Distance | 50M |
| 3D | - |
| CEC | - |
| EDID | - |
| 4K | - |
| Page | 25 |
| Length | 50M |
| Cable Length | 50M |
| Manufacturer | Cypress |
| Device Type | Receiver |
| SKU No | WES_CA-COMP50R_1 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | CA-COMP50R |
| SKU | WES_CA-COMP50R_1 |
| Brand | Cypress |
