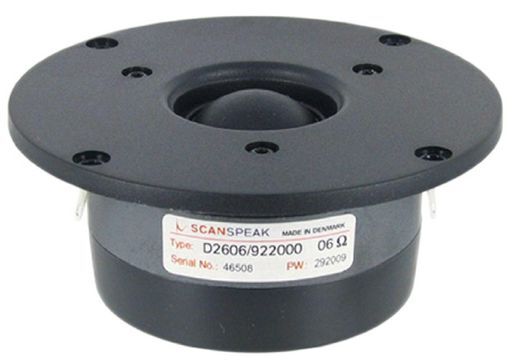

VIFA 1 SILK DOME TWEETER D27TG35-04
VIFA D27TG35-04 REPLACEMENTMANUFACTURED IN DENMARK BY SC
SKU code: WES_D2606922000_2
This is a VIFA 1 SILK DOME TWEETER D27TG35-04 of brand Scan-speak.
SALIN is a leading Australian appliance spare parts distributer . We take pride in our ability to bring hard to find appliance spare parts into the Australian market. We are proudly Australian owned and operated. Our warehouse and sales office is conveniently located in Auburn, NSW. Our range of spare parts are manufactured with premium components and quality material. Most of our range is directly sourced from manufacturers and geniune.
| TECHNICAL SHEET | |
|---|---|
| Title | VIFA 1 SILK DOME TWEETER D27TG35-04 |
| Notes | VIFA D27TG35-04 REPLACEMENTMANUFACTURED IN DENMARK BY SCAN-SPEAK Treated silk fabric diaphragm 1 dome and surround. Ventilated aluminium voice coil, ferro fluid cooled. Dual chamber, dampened, low resonance cavity 650Hz. Flat face plate (Traditional 4 screw) wide dispersion. Suit replacement / upgrade with 12dB/Oct crossover. Silky smooth up to 30KHz, 450W short term power.Originaly this tweeter was the Vifa driver D27TG35-04 which is no longer manufactured. Its direct replacement is now made in Denmark by Scan-Speak. |
| Description | 26mm Dome Tweeter 6 ohm, Ferrite Magnet, Double Chamber |
| Type | Tweeter |
| Price Type | each |
| Power | 100Wrms |
| Coil | 26mmØ |
| Width | 104mm |
| Mag. | 0.5kg |
| Sens. | 91.4dB |
| Re | 4.6Ω |
| Qms | 1.22 |
| Qes | 1.07 |
| Qts | 0.57 |
| Vas | 0.01L |
| Sd | 7.1cm² |
| Cms | 0.11mm/N |
| Fs | 850Hz |
| Mms | 0.33g |
| Zn | 6Ω |
| Le | 0.04mH |
| Rms | 1.44kg/s |
| Manufacturer | Scan-speak |
| Impedance (Ohm) | 6 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 1 |
| QTY | 1 |
| Page | 1 |
| Size | 1' |
| Prms | 100W |
| Depth | 38.9mm |
| Impedance | 6Ω (Re 4.6Ω) |
| Series | Discovery |
| SKU No | WES_D2606/922000_2 |
SALIN is not responsible for any possible damage caused by misselection and incorrect installation of the spare parts.
All electrical items must be fitted by a qualified electrician.
Errors and Omissions Excepted:
All information contained herein this website is assumed to be accurate, however, no responsibility is assumed by SALIN for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
Legal Disclaimer:
All trademarks, logos and principal representations remain the property of their respective owners. The use of brands, brand names and trademarks doesn't imply SALIN is representing those brands, companies, trademarks or names. SALIN holds no rights to products and/or services available or provided by the said companies, brands, brand names and trademarks.
| MPN | D2606/922000 |
| SKU | WES_D2606922000_2 |
| Brand | Scan-speak |
